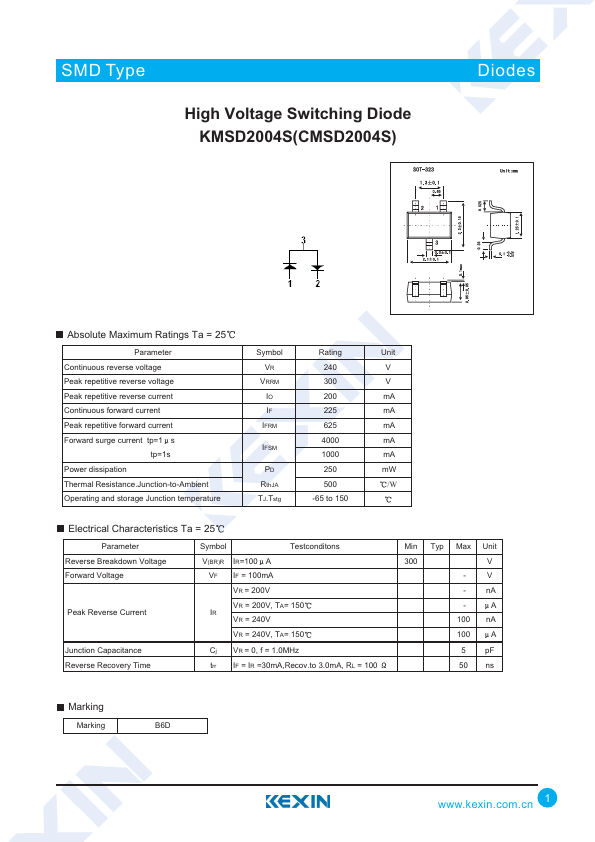

SMD Type High Voltage Switching Diode KMSD2004S(CMSD2004S) Diodes Absolute Maximum Ratings Ta = 25 Parameter Continuous reverse voltage Peak repetitive reverse voltage Peak repetitive reverse current Continuous forward current Peak repetitive forward current Forward surge current tp=1 s tp=1s Power dissipation Thermal Resistance.Junction-to-Ambient Operating and storage Junction temperature Symbol VR VRRM IO IF IFRM IFSM PD Rth JA TJ.Tstg Rating 240 300 200 225 625 4000 1000 250 500 -65 to 150 Unit V V m A m A m A m A m A m W /W Electrical Characteristics Ta = 25 Parameter Reverse Breakdown Voltage Forward Voltage Peak Reverse Current Junction Capacitance Reverse Recovery Time Symbol Testconditons V(BR)R IR=100 A VF IF = 100m A VR = 200V VR = 200V, TA= 150 IR VR = 240V VR = 240V, TA= 150 Cj VR = 0, f = 1.0MHz trr IF = IR =30m A,Recov.to 3.0m A, RL = 100 Min Typ Max Unit - V - n A - A 100 n A 5 p F 50 ns Marking Marking B6D .kexin..cn...
