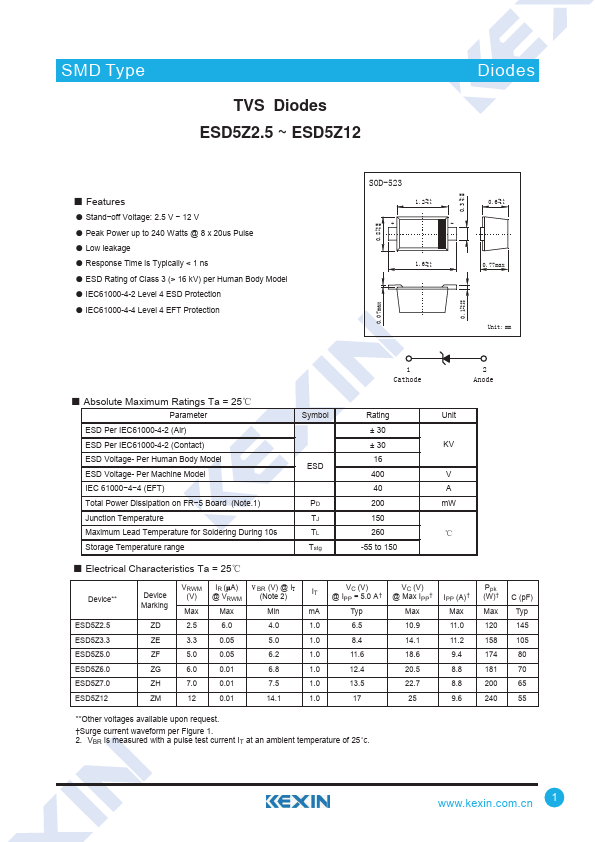

ESD5Z3.3
Features
ƽ Standíoff Voltage: 2.5 V í 12 V ƽ Peak Power up to 240 Watts @ 8 x 20us Pulse ƽ Low leakage ƽ Response Time is Typically < 1 ns ƽ ESD Rating of Class 3 (> 16 k V) per Human Body Model ƽ IEC61000-4-2 Level 4 ESD Protection ƽ IEC61000-4-4 Level 4 EFT Protection
62'
PD[
PD[
8QLW PP
&DWKRGH
$QRGH
Ƶ Absolute Maximum Ratings Ta = 25ć
Parameter
Symbol
Rating
Unit
ESD Per IEC61000-4-2 (Air)
± 30
ESD Per IEC61000-4-2 (Contact)
± 30
ESD Voltage- Per Human Body Model ESD Voltage- Per Machine Model
IEC 61000í4í4 (EFT)
Total Power Dissipation on FRí5 Board (Note.1)
200 m W
Junction Temperature
Maximum Lead Temperature for Soldering During 10s
ć
Storage Temperature...
