FDN5630 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 1.7 A (VGS = 10V).
  • RDS(ON) ＜ 100mΩ (VGS = 10V).
  • RDS(ON) ＜ 120mΩ (VGS = 6V) D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed Drain Current Power Dissipa.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDN5630 60V N-Channel MOSFET Fairchild Semiconductor
FDN5630 N-Channel Power MOSFET ON Semiconductor
FDN5632N-F085 N-Channel Logic Level PowerTrench MOSFET ON Semiconductor
FDN5618P 60V P-Channel MOSFET Fairchild Semiconductor
FDN5618P P-Channel MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
FDN304P P-Channel MOSFET
FDN327N N-Channel MOSFET
FDN337N N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

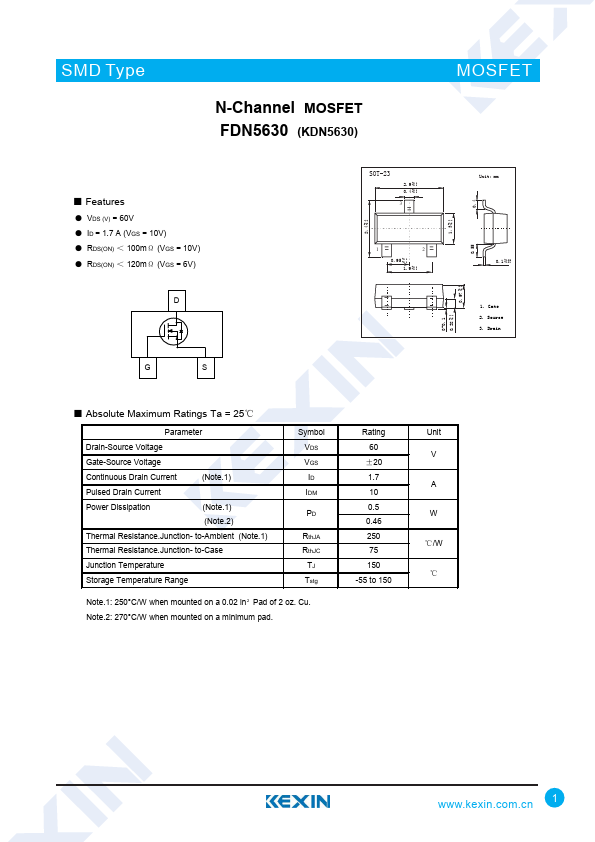

SMD Type N-Channel MOSFET FDN5630 (KDN5630) MOSFET ■ Features ● VDS (V) = 60V ● ID = 1.7 A (VGS = 10V) ● RDS(ON) ＜ 100mΩ (VGS = 10V) ● RDS(ON) ＜ 120mΩ (VGS = 6V) D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed Drain Current Power Dissipation (Note.1) (Note.2) Thermal Resistance.Junction- to-Ambient (Note.1) Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA RthJC TJ Tstg Note.1: 250°C/W when mounted on a 0.
