FDS89161 - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) = 100V.
  • ID = 2.7 A.
  • RDS(ON) ＜ 105mΩ (VGS = 10V).
  • RDS(ON) ＜ 160mΩ (VGS = 4.5V).
  • High performance trench technology for extremely low rDS(on).
  • CDM ESD Protection Level > 2KV typical +0.04 0.21 -0.02 SOP-8 D2 5 D2 6 Q2 D1 7 D1 8atings Q1 Ta = 25 4 G2 3 S2 2 G1 1 S1 1.50 0.15.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Pulsed Single Pulse Avalanche Energy (.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDS89161 Dual N-Channel MOSFET Fairchild Semiconductor
FDS89161LZ Dual N-Channel MOSFET Fairchild Semiconductor
FDS89141 Dual N-Channel MOSFET Fairchild Semiconductor
FDS89141 Dual N-Channel 100V MOSFET VBsemi
FDS8926A Dual N-Channel MOSFET Fairchild Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
FDS2672 N-Channel MOSFET
FDS6930B Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

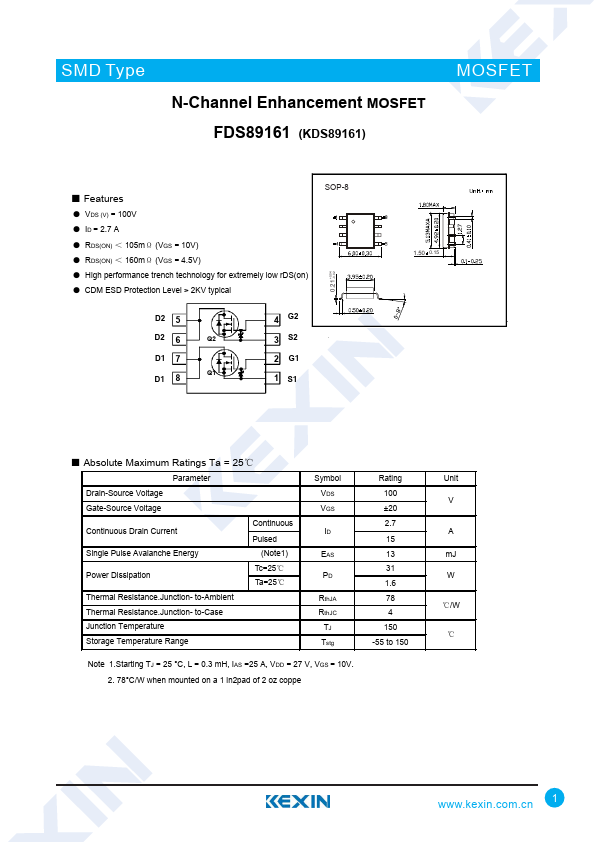

SMD Type N-Channel Enhancement MOSFET FDS89161 (KDS89161) MOSFET ■ Features ● VDS (V) = 100V ● ID = 2.7 A ● RDS(ON) ＜ 105mΩ (VGS = 10V) ● RDS(ON) ＜ 160mΩ (VGS = 4.5V) ● High performance trench technology for extremely low rDS(on) ● CDM ESD Protection Level > 2KV typical +0.04 0.21 -0.02 SOP-8 D2 5 D2 6 Q2 D1 7 D1 8atings Q1 Ta = 25 4 G2 3 S2 2 G1 1 S1 1.50 0.15 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Pulsed Single Pulse Avalanche Energy (Note1) Power Dissipation Tc=25℃ Ta=25℃ Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Symbol VDS VGS ID EAS PD RthJA RthJC TJ Tstg Note 1.Starting TJ = 25 °C, L = 0.
