FR9024N - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-55V.
  • ID =-11 A (VGS =-10V).
  • RDS(ON) ＜ 175mΩ (VGS =-10V).
  • Fast Switching.
  • Fully Avalanche Rated D + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 0.80+0.1 -0.1 0.127 m ax + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 + 5.55 0.15 -0.15 3.80 Unit: mm 1 Gate 2 Drain 3 Source 4 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FR9024N IRFR9024N International Rectifier
FR9024N 60V P-Channel MOSFET VBsemi
FR9024 IRFR9024 International Rectifier
FR900R12IP4D PrimePACK3+ module Infineon
FR9014 P-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

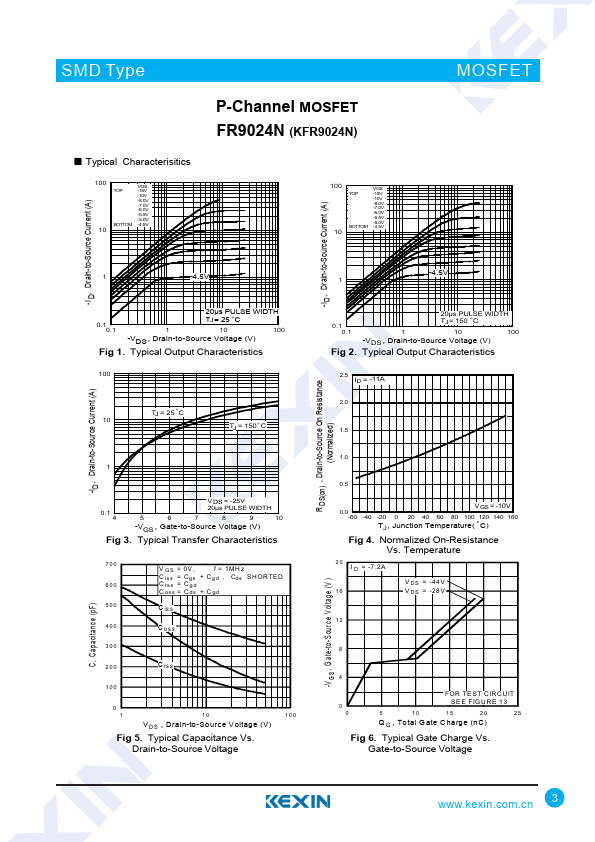

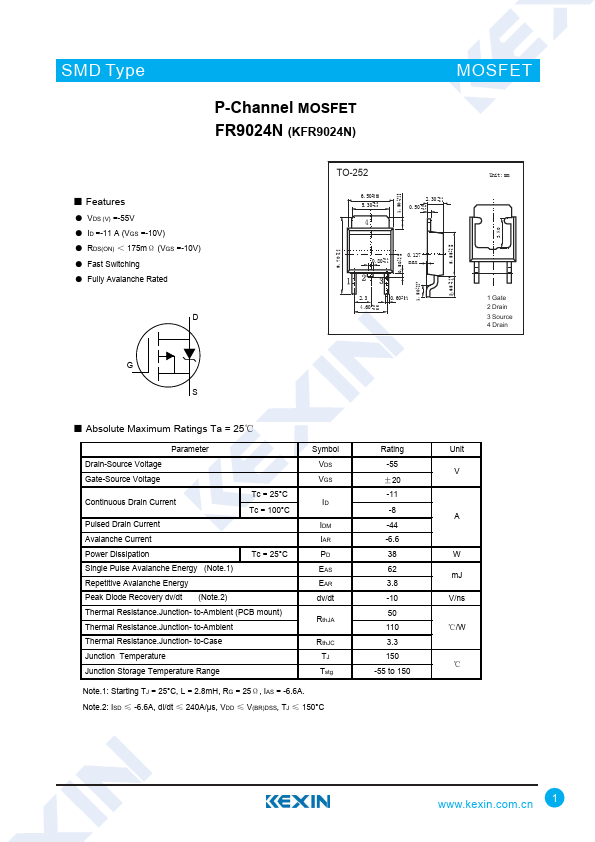

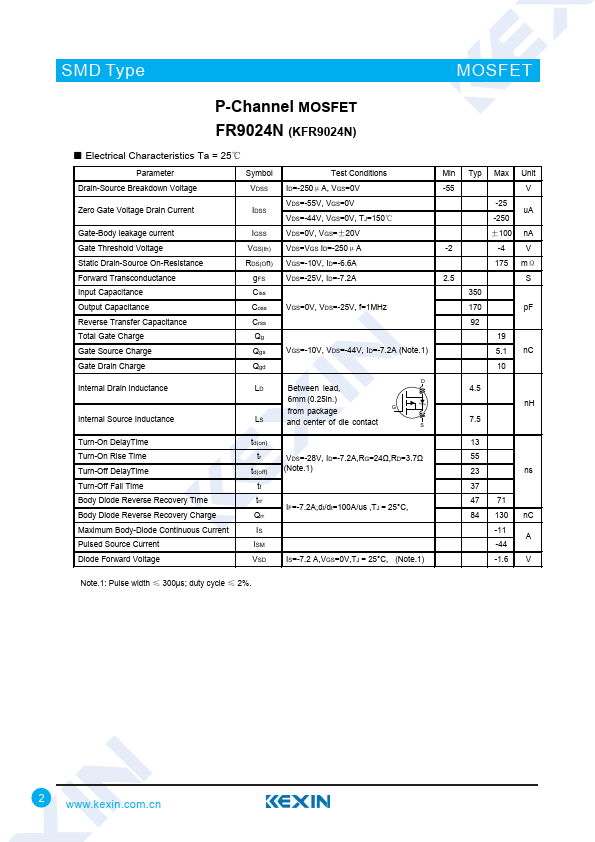

SMD Type P-Channel MOSFET FR9024N (KFR9024N) MOSFET ■ Features ● VDS (V) =-55V ● ID =-11 A (VGS =-10V) ● RDS(ON) ＜ 175mΩ (VGS =-10V) ● Fast Switching ● Fully Avalanche Rated D + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 0.80+0.1 -0.1 0.127 m ax + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 + 5.55 0.15 -0.15 3.80 Unit: mm 1 Gate 2 Drain 3 Source 4 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc = 25°C Tc = 100°C Pulsed Drain Current Avalanche Current Power Dissipation Single Pulse Avalanche Energy (Note.1) Tc = 25°C Repetitive Avalanche Energy Peak Diode Recovery dv/dt (Note.
