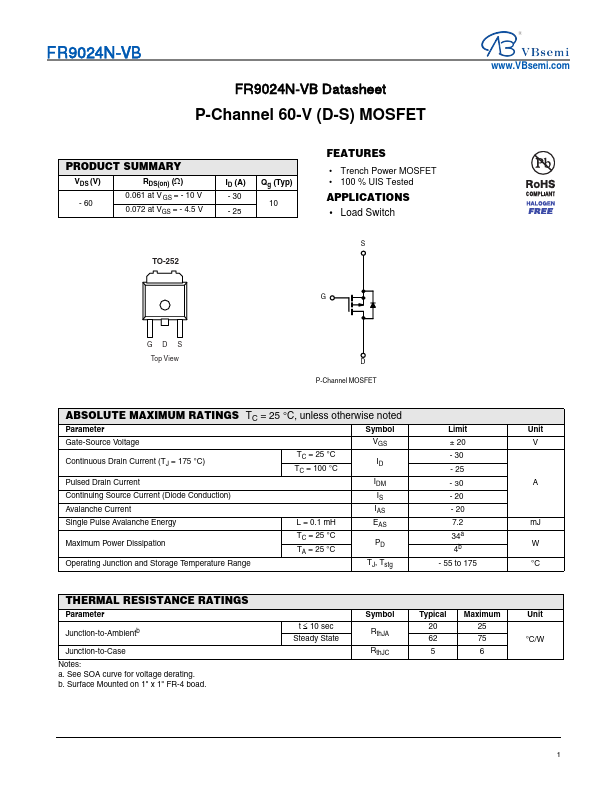

FR9024N
FR9024N is 60V P-Channel MOSFET manufactured by VBsemi.
FEATURES
- Trench Power MOSFET
- 100 % UIS Tested APPLICATIONS
- Load Switch
.VBsemi.
GDS Top View
D P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted
Parameter
Symbol
Limit
Unit
Gate-Source Voltage
± 20
Continuous Drain Current (TJ = 175 °C)
TC = 25 °C TC = 100 °C
- 30
- 25
Pulsed Drain Current
- 30
Continuing Source Current (Diode Conduction)
- 20
Avalanche Current
- 20
Single Pulse Avalanche Energy Maximum Power Dissipation
L = 0.1 m H
7.2 m J
TC = 25 °C TA = 25 °C
34a...
