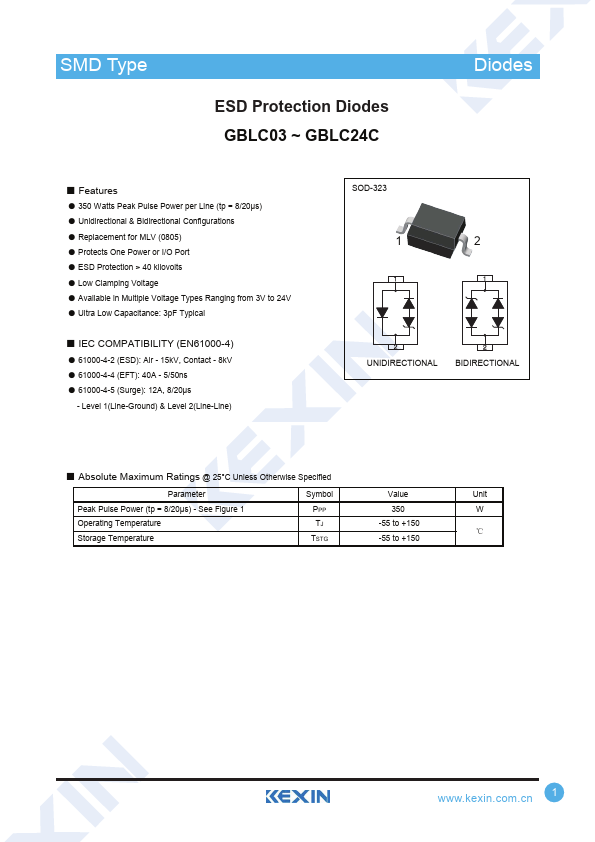

GBLC18 Overview
SMD Type ESD Protection Diodes GBLC03 ~ GBLC24C TransDisiotodress.
GBLC18 Key Features
- 350 Watts Peak Pulse Power per Line (tp = 8/20µs)
- Unidirectional & Bidirectional Configurations
- Replacement for MLV (0805)
- Protects One Power or I/O Port
- ESD Protection > 40 kilovolts
- Low Clamping Voltage
- Available in Multiple Voltage Types Ranging from 3V to 24V
- Ultra Low Capacitance: 3pF Typical
- IEC PATIBILITY (EN61000-4)
- 61000-4-2 (ESD): Air
