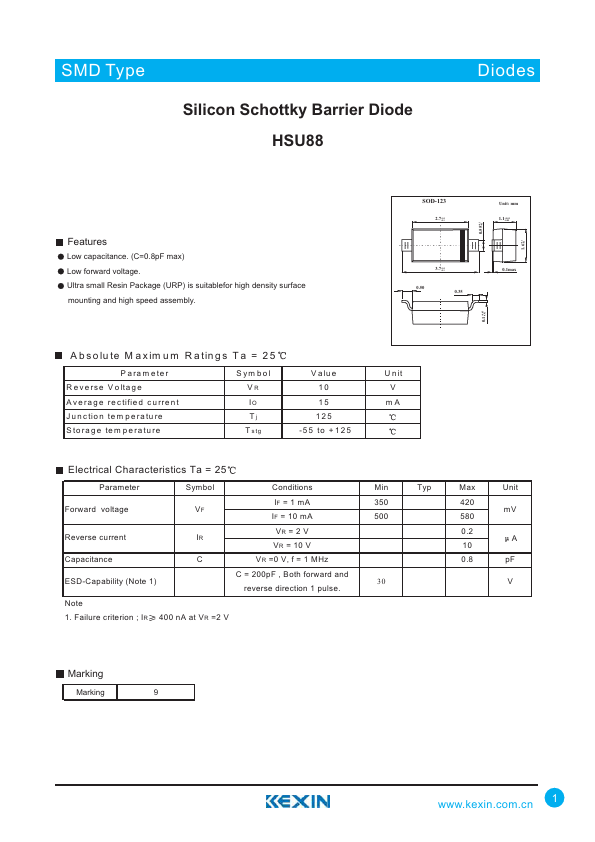

HSU88 Datasheet Silicon Schottky Barrier Diode

Manufacturer: Kexin Semiconductor

Overview: SMD Type Silicon Schottky Barrier Diode HSU88 Diodes +0.1 0.55 -0.1 +0.1 1.6 -0.

Datasheet Details

Part number	HSU88
Manufacturer	Kexin Semiconductor
File Size	28.91 KB
Description	Silicon Schottky Barrier Diode
Datasheet	HSU88-Kexin.pdf

Low capacitance. (C=0.8pF max) Low forward voltage. Ultra small Resin Package (URP) is suitablefor high density surface mounting and high speed assembly. SOD-123 2.7+0.1 -0.1 Unit: mm 1.1+0.05 -0.05 3.7+0.1 -0.1 0.50 0.35 0.1max +0.05 0.1 -0.02 A b so lu te M a xim u m R a tin g s T a = 2 5 P aram eter R everse V oltage A verage rectified current Junction tem perature S torage tem perature Sym bol VR IO Tj T stg V alue 10 15 125 -55 to +125 U nit V mA Electrical Characteristics Ta = 2.
