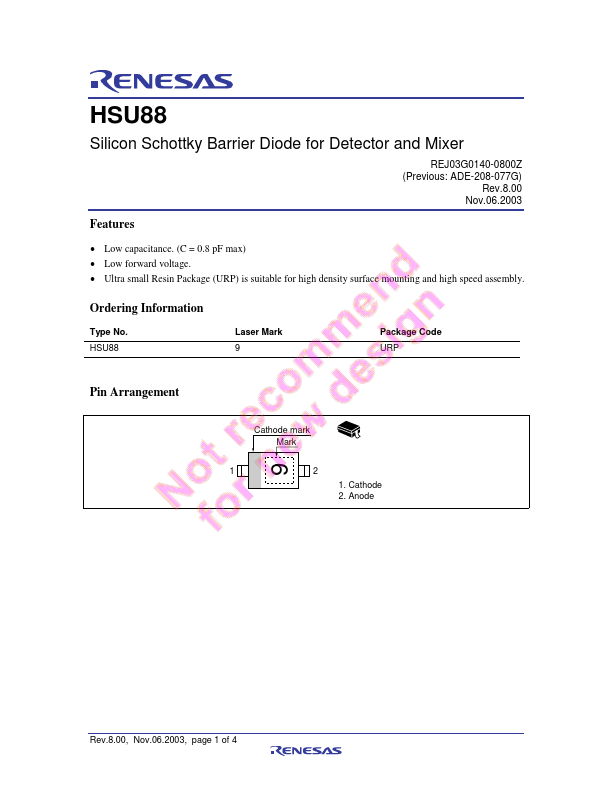

HSU88
HSU88 is Silicon Schottky Barrier Diode manufactured by Renesas.
Features
- Low capacitance. (C = 0.8 p F max)
- Low forward voltage.
- Ultra small Resin Package (URP) is suitable for high density surface mounting and high speed assembly.
Ordering Information
Type No. HSU88
Laser Mark 9
Package Code URP
Pin Arrangement
Cathode mark Mark
1. Cathode 2. Anode
Rev.8.00, Nov.06.2003, page 1 of 4

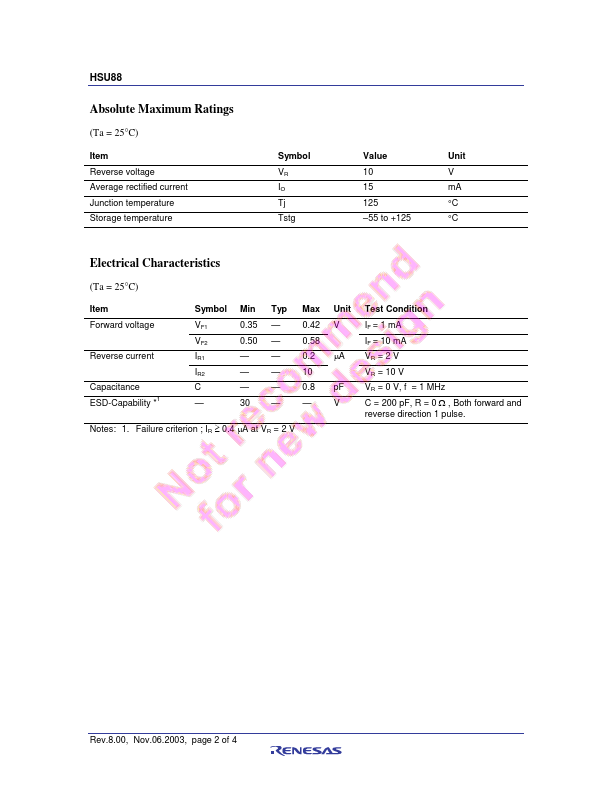

Absolute Maximum Ratings
(Ta = 25°C) Item Reverse voltage Average rectified current Junction temperature Storage temperature
Symbol VR IO Tj Tstg
Value
Unit
15 m A
°C
- 55 to +125
°C
Electrical Characteristics
(Ta = 25°C)
Item Forward voltage
Reverse current
Capacitance ESD-Capability
- 1
Symbol Min Typ
VF1
- VF2
- IR1
- -...
