IRF830S - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 500V.
  • ID = 4.5 A (VGS = 10V).
  • RDS(ON) ＜ 1.5Ω (VGS = 10V).
  • Fast Switching.
  • Repetitive Avalanche Rated D G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Tc=25℃ Tc=100℃ Power Dissipation Tc=25℃ Ta=25℃ Single Pulse Avalanche Energy (Note1) Repetitive Avalanche Energy Peak Diode Recovery dv/dt (Note 2) Thermal Resistance. Junction- to-Ambient.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRF830S Power MOSFET International Rectifier
IRF830S Power MOSFET Vishay
IRF830 PowerMOS transistor NXP
IRF830 N-Channel Power MOSFET STMicroelectronics
IRF830 N-CHANNEL ENHANCEMENT MODE MOSFET TRSYS

Other Datasheets by Kexin Semiconductor

Part Number Description
IRF840S N-Channel MOSFET
IRF1404Z N-Channel MOSFET
IRF3205 Power MOSFET
IRF3808S N-Channel MOSFET
IRF540NS N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

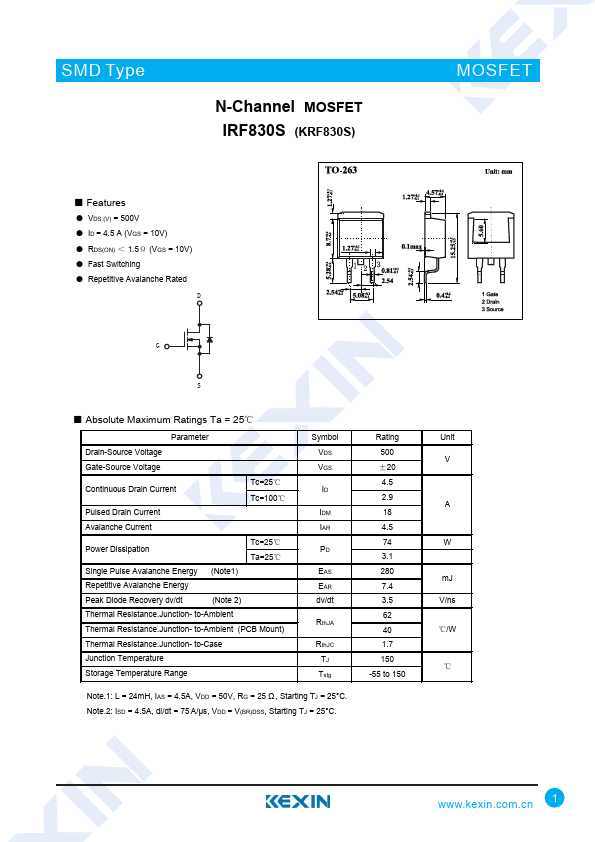

SMD Type N-Channel MOSFET IRF830S (KRF830S) MOSFET ■ Features ● VDS (V) = 500V ● ID = 4.5 A (VGS = 10V) ● RDS(ON) ＜ 1.5Ω (VGS = 10V) ● Fast Switching ● Repetitive Avalanche Rated D G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Tc=25℃ Tc=100℃ Power Dissipation Tc=25℃ Ta=25℃ Single Pulse Avalanche Energy (Note1) Repetitive Avalanche Energy Peak Diode Recovery dv/dt (Note 2) Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Ambient (PCB Mount) Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM IAR PD EAS EAR dv/dt RthJA RthJC TJ Tstg Note.1: L = 24mH, IAS = 4.
