KI005PDFN - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-4.1 A (VGS =-4.5V).
  • RDS(ON) ＜ 45mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 60mΩ (VGS =-2.5V) MOSFET.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Power Dissipation Junction Temperature Junction Storage Temperature Range Symbol Rating Unit VDS -20 V VGS ±12 ID -4.1 A PD 1.4 W TJ 150 ℃ Tstg -55 to 150.
  • Electrical Characteristics Ta = 25℃ Parameter Drain-Source Breakdown Vol.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KI005P P-Channel MOSFET
KI001P P-Channel MOSFET
KI001PW P-Channel MOSFET
KI007P P-Channel MOSFET
KI007P-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

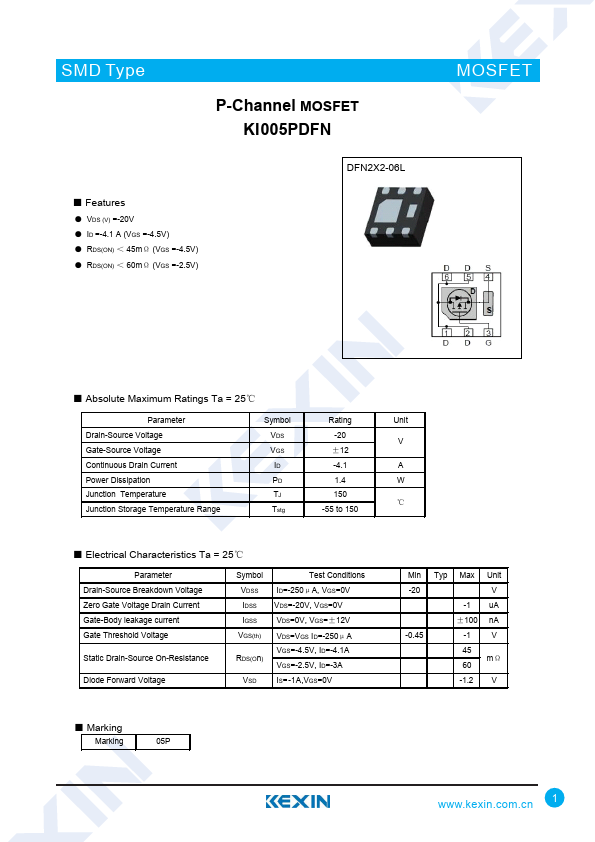

SMD Type P-Channel MOSFET KI005PDFN DFN2X2-06L ■ Features ● VDS (V) =-20V ● ID =-4.1 A (VGS =-4.5V) ● RDS(ON) ＜ 45mΩ (VGS =-4.5V) ● RDS(ON) ＜ 60mΩ (VGS =-2.5V) MOSFET ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Power Dissipation Junction Temperature Junction Storage Temperature Range Symbol Rating Unit VDS -20 V VGS ±12 ID -4.1 A PD 1.
