KI016N - N-Channel MOSFET

Key Features

  • ƽ VDS (V) = 18V ƽ ID = 6.0 A (VGS =4.5V) ƽ RDS(ON) ˘ 22m¡ (VGS = 4.5V) ƽ RDS(ON) ˘ 27m¡ (VGS = 2.5V) ƽ RDS(ON) ˘ 34m¡ (VGS = 1.8V) G1 S2 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 +0.2 2.8 -0.1 3D 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TJ =150ć.
  • 1 Pulsed Drain Curre.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KI010NDS N-Channel MOSFET
KI001P P-Channel MOSFET
KI001PW P-Channel MOSFET
KI005P P-Channel MOSFET
KI007P P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

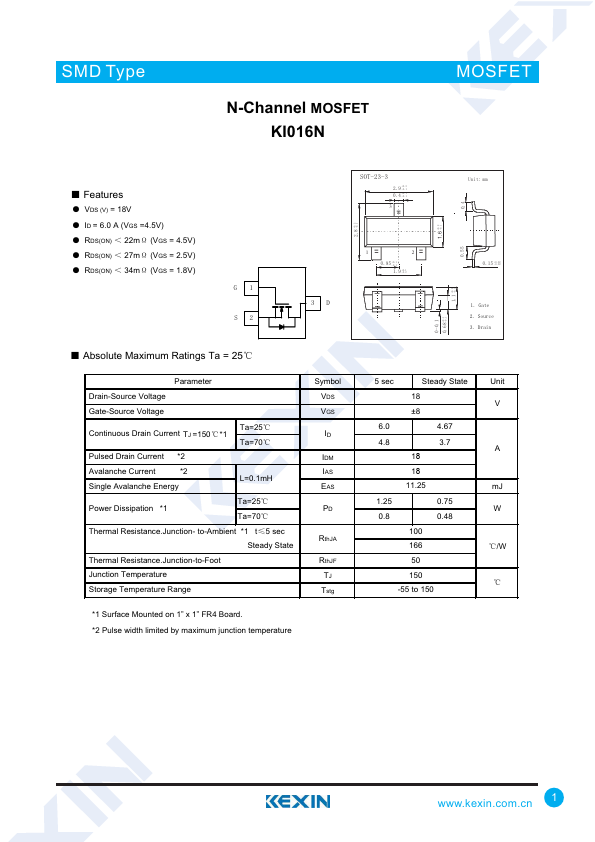

SMD Type N-Channel MOSFET KI016N MOSFET Ƶ Features ƽ VDS (V) = 18V ƽ ID = 6.0 A (VGS =4.5V) ƽ RDS(ON) ˘ 22m¡ (VGS = 4.5V) ƽ RDS(ON) ˘ 27m¡ (VGS = 2.5V) ƽ RDS(ON) ˘ 34m¡ (VGS = 1.8V) G1 S2 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 +0.2 2.8 -0.1 3D 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TJ =150ć*1 Pulsed Drain Current *2 Ta=25ć Ta=70ć Avalanche Current *2 Single Avalanche Energy L=0.1mH Power Dissipation *1 Ta=25ć Ta=70ć Thermal Resistance.Junction- to-Ambient *1 tİ5 sec Steady State Thermal Resistance.
