KRF7204 - Power MOSFET

Key Features

  • Adavanced Process Technology Ultra Low On-Resistance P-Channel MOSFET Surface Mount Available in Tape & Reel Dynamic dv/dt Rating Fast Switching ICIC Absolute Maximum Ratings Ta = 25 Parameter Symbol Continuous Drain Current, VGS @ 10V @ TA = 25 ID Continuous Drain Current, VGS @ 10V @ TA = 70 ID Pulsed Drain Current.
  • 1 IDM Power Dissipation @TC = 25 PD Linear Derating Factor Gate-to-Source Voltage VGS Peak Diode Recovery dv/dt.
  • 2 dv/dt Junction and Storage Temperature.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KRF-V6300D AUDIO VIDEO CONTROL CENTER INSTRUCTION MANUAL Kenwood
KRF-V7050D Audio Video Surround Receiver Kenwood
KRF-V7510D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-V8010D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-X9070D AUDIO VIDEO SURROUND RECEIVER MANUAL Kenwood

Other Datasheets by Kexin Semiconductor

Part Number Description
KRF7205 Power MOSFET
KRF7220 Power MOSFET
KRF7104 Power MOSFET
KRF7105 Power MOSFET
KRF7301 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

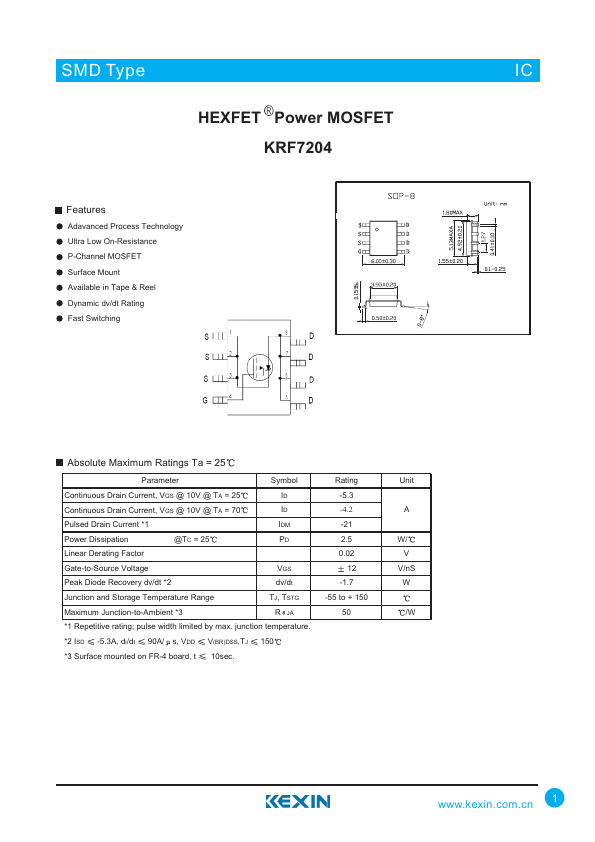

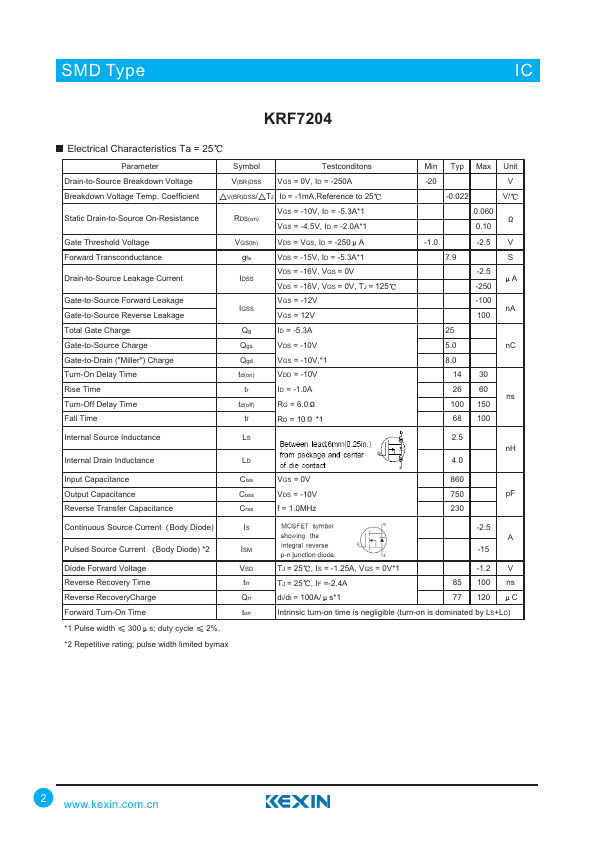

SMD Type HEXFET Power MOSFET KRF7204 Features Adavanced Process Technology Ultra Low On-Resistance P-Channel MOSFET Surface Mount Available in Tape & Reel Dynamic dv/dt Rating Fast Switching ICIC Absolute Maximum Ratings Ta = 25 Parameter Symbol Continuous Drain Current, VGS @ 10V @ TA = 25 ID Continuous Drain Current, VGS @ 10V @ TA = 70 ID Pulsed Drain Current *1 IDM Power Dissipation @TC = 25 PD Linear Derating Factor Gate-to-Source Voltage VGS Peak Diode Recovery dv/dt *2 dv/dt Junction and Storage Temperature Range TJ, TSTG Maximum Junction-to-Ambient *3 R JA *1 Repetitive rating; pulse width limited by max. junction temperature. *2 ISD -5.3A, di/dt 90A/ s, VDD V(BR)DSS,TJ 150 *3 Surface mounted on FR-4 board, t 10sec. Rating -5.3 -4.2 -21 2.5 0.02 12 -1.
