KRF7309 - Power MOSFET

Key Features

  • Generation V Technology Ultra Low On-Resistance Dual N and P Channel Mosfet Surface Mount Available in Tape & Reel Dynamic dv/dt Rating Fast Switching ICIC Absolute Maximum Ratings Ta = 25 Parameter Symbol 10 Sec. Pulse Drain Current, VGS @ 10V Ta = 25 ID Continuous Drain Current VGS @ 10V Ta = 25 ID Continuous Drain Current VGS @ 10V Ta = 70 ID Pulsed Drain Current.
  • 1 IDM Power Dissipation @Ta= 25.
  • 3 PD Linear Derating Factor (PCB Mount).

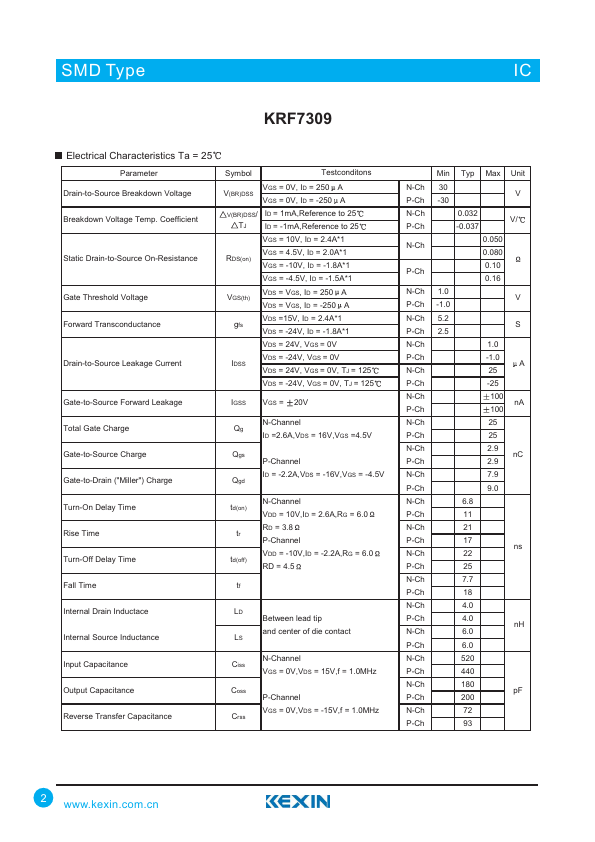

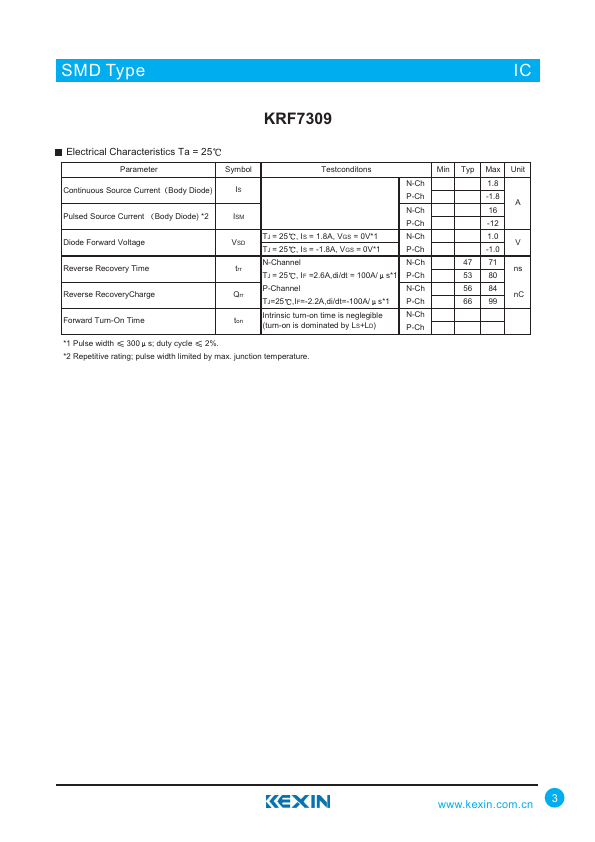

  • 4 Peak Diode Recovery dv/dt.
