SMD Type

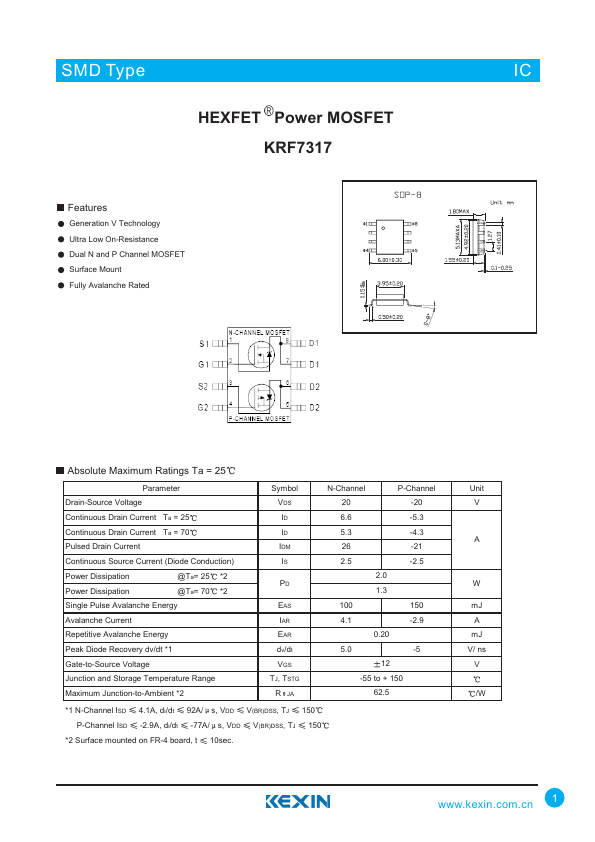

HEXFET Power MOSFET KRF7317
Features
Generation V Technology Ultra Low On-Resistance Dual N and P Channel MOSFET Surface Mount Fully Avalanche Rated
ICIC
Absolute Maximum Ratings Ta = 25
Parameter
Drain-Source Voltage
Continuous Drain Current Ta = 25
Continuous Drain Current Ta = 70
Pulsed Drain Current
Continuous Source Current (Diode Conduction)
Power Dissipation
@Ta= 25 *2
Power Dissipation
@Ta= 70 *2
Single Pulse Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt *1
Gate-to-Source Voltage
Junction and Storage Temperature Range
Maximum Junction-to-Ambient *2
Symbol VDS ID ID IDM IS
PD
EAS IAR EAR dv/dt VGS TJ, TSTG R JA
N-Channel
P-Channel
20
-20
6.6
-5.3
5.3
-4.3
26
-21
2.5
-2.5
2.0
1.3
100
150
4.
