KSP126 - N-Channel MOSFET

Features

  • s.
  • VDS (V) = 250V.
  • ID = 350mA.
  • RDS(ON) < 7Ω @ VGS = 10V.
  • Direct interface to C-MOS, TTL,etc.
  • High-speed switching.

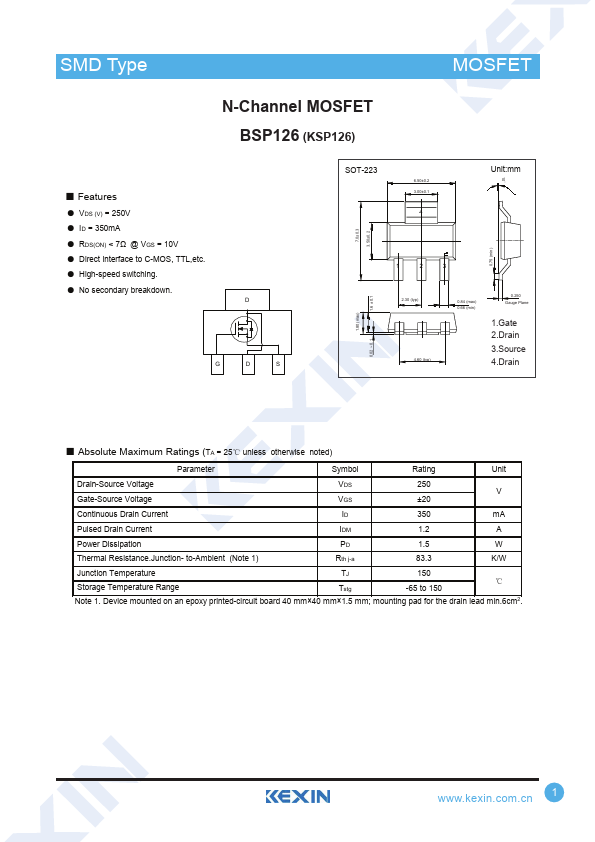

  • No secondary breakdown. D G D S SOT-223 6.50±0.2 3.00±0.1 4 10。 Unit:mm 7.0±0.3 3.50±0.2 0.75 (min) 1.6 ± 0.1 1.80 (max) 1 2 3 2.30 (typ) 4.60 (typ) 0.84 (max) 0.66 (min) 0.250 Gauge Plane 1.Gate 2.Drain 3.Source 4.Drain 0.02 ~ 0.1.

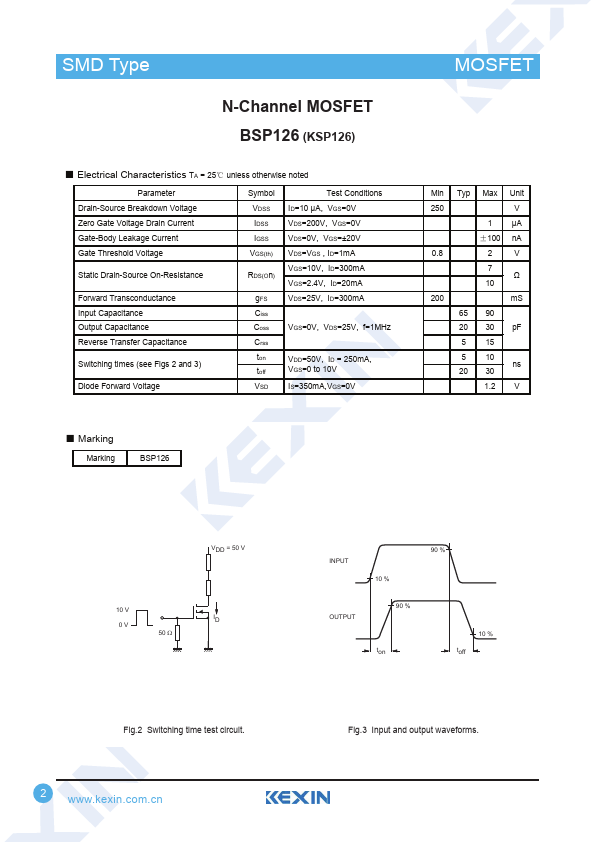

  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Dra.
