KSP230 - P-Channel Enhancement Mode Vertical D-MOS Transistor

Key Features

  • Direct interface to C-MOS,TTL,etc High-speed switching No secondary breakdown SOT-223 6.50+0.2 -0.2 3.00+0.1 -0.1 4 Unit: mm 3.50+0.2 -0.2 0.90+0.2 -0.2 7.00+0.3 -0.3 1 2 3 2.9 4.6 0.70+0.1 -0.1 1 gate 2,4 drain 3 source Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Drain-source voltage (DC) VDS -300 V Gate-source voltage (DC) open drain VGSO 20 V Drain current (DC) ID -210 mA Peak drain current IDM -0.75 A Total power dissipation.
  • Ptot 1.5.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KSP22 Dip Switch OTAX
KSP2222 General Purpose Transistor Fairchild Semiconductor
KSP2222A NPN Amplifier Fairchild Semiconductor
KSP2222A NPN General-Purpose Amplifier ON Semiconductor
KSP24 VHF Transistor Fairchild Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
KSP126 N-Channel MOSFET
KSP92 P-channel enhancement mode vertical D-MOS transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

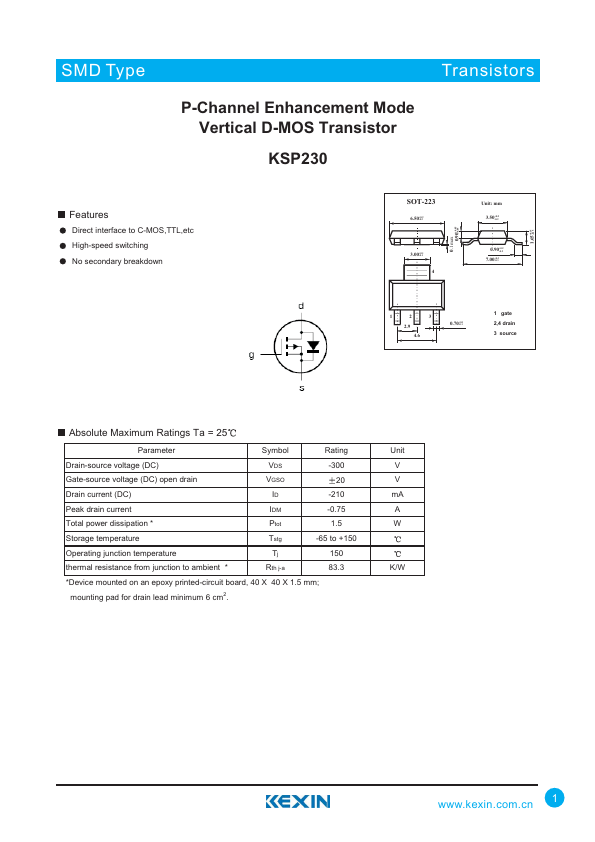

0.1max +0.05 0.90 -0.05 +0.15 1.65 -0.15 SMD Type Transistors P-Channel Enhancement Mode Vertical D-MOS Transistor KSP230 Features Direct interface to C-MOS,TTL,etc High-speed switching No secondary breakdown SOT-223 6.50+0.2 -0.2 3.00+0.1 -0.1 4 Unit: mm 3.50+0.2 -0.2 0.90+0.2 -0.2 7.00+0.3 -0.3 1 2 3 2.9 4.6 0.70+0.1 -0.1 1 gate 2,4 drain 3 source Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Drain-source voltage (DC) VDS -300 V Gate-source voltage (DC) open drain VGSO 20 V Drain current (DC) ID -210 mA Peak drain current IDM -0.75 A Total power dissipation * Ptot 1.5 W Storage temperature Tstg -65 to +150 Operating junction temperature Tj 150 thermal resistance from junction to ambient * Rth j-a 83.
