KVN4424Z - 250V N-Channel Enhancement Mode Vertical MOSFET

Key Features

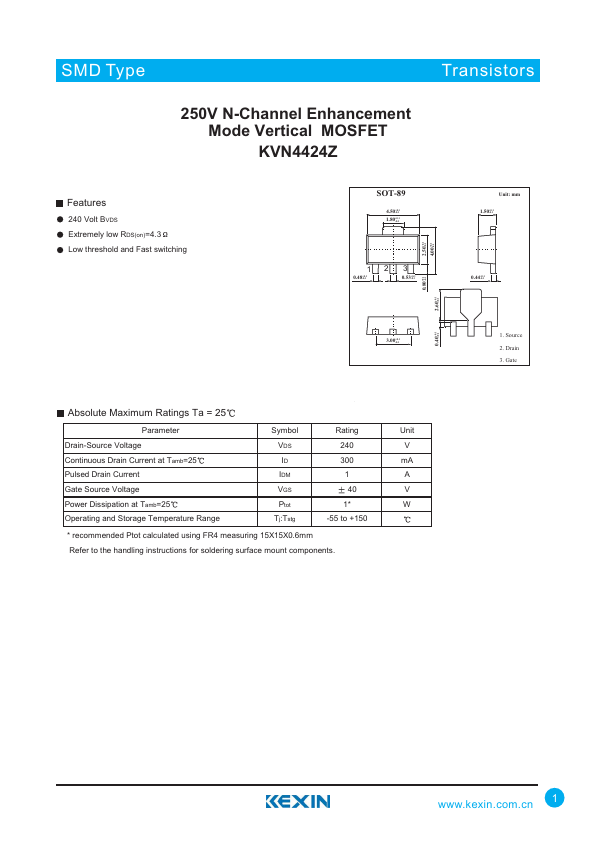

  • 240 Volt BVDS Extremely low RDS(on)=4.3 Low threshold and Fast switching SOT-89 4.50+0.1 -0.1 1.80+0.1 -0.1 12 3 0.48+0.1 -0.1 0.53+0.1 -0.1 +0.1 2.50 -0.1 +0.1 4.00 -0.1 Unit: mm 1.50+0.1 -0.1 0.44+0.1 -0.1 +0.1 0.80 -0.1 +0.1 2.60 -0.1 +0.1 0.40 -0.1 3.00+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Continuous Drain Current at Tamb=25 Pulsed Drain Current Gate Source Voltage Power Dissipation at Tamb=25 Operating and Storage Temperature Range Symbol Rat.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KVN4525E6 250V N-Channel Enhancement Mode MOSFET
KVN4525Z 250V N-Channel Enhancement Mode MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

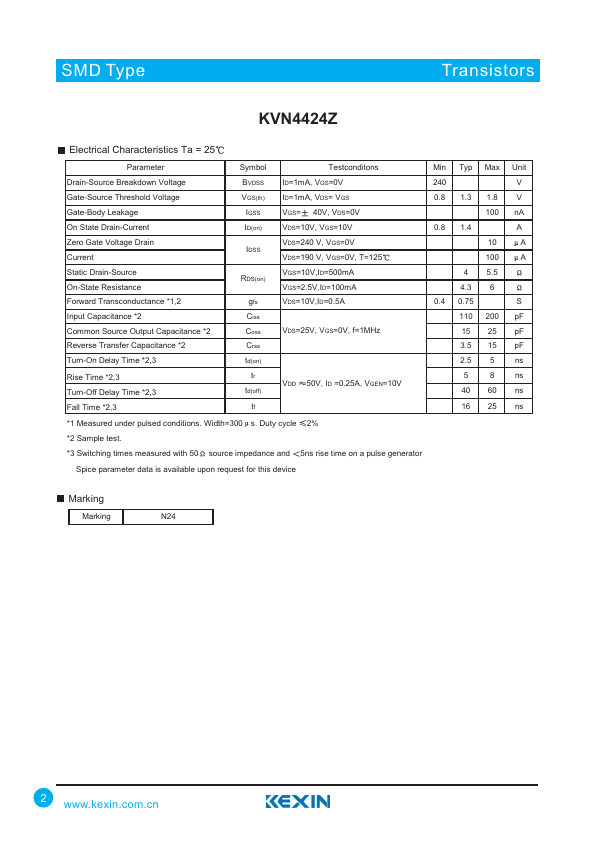

SMD Type TransistIoCrs 250V N-Channel Enhancement Mode Vertical MOSFET KVN4424Z Features 240 Volt BVDS Extremely low RDS(on)=4.3 Low threshold and Fast switching SOT-89 4.50+0.1 -0.1 1.80+0.1 -0.1 12 3 0.48+0.1 -0.1 0.53+0.1 -0.1 +0.1 2.50 -0.1 +0.1 4.00 -0.1 Unit: mm 1.50+0.1 -0.1 0.44+0.1 -0.1 +0.1 0.80 -0.1 +0.1 2.60 -0.1 +0.1 0.40 -0.1 3.00+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Continuous Drain Current at Tamb=25 Pulsed Drain Current Gate Source Voltage Power Dissipation at Tamb=25 Operating and Storage Temperature Range Symbol Rating Unit VDS 240 V ID 300 mA IDM 1 A VGS 40 V Ptot 1* W Tj:Tstg -55 to +150 * recommended Ptot calculated using FR4 measuring 15X15X0.
