KX6N70 Datasheet N-channel Enhancement MOSFET

Manufacturer: Kexin Semiconductor

Overview: DIP Type N-Channel Enhancement MOSFET KX6N70 MOSFET ■.

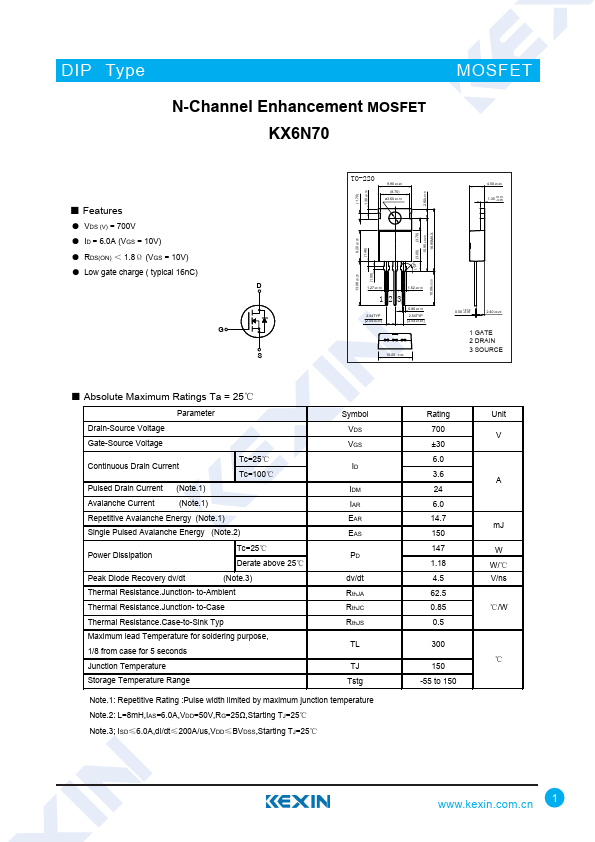

KX6N70 datasheet preview

Datasheet Details

Part number	KX6N70
Manufacturer	Kexin Semiconductor
File Size	2.88 MB
Description	N-Channel Enhancement MOSFET
Datasheet	KX6N70-Kexin.pdf

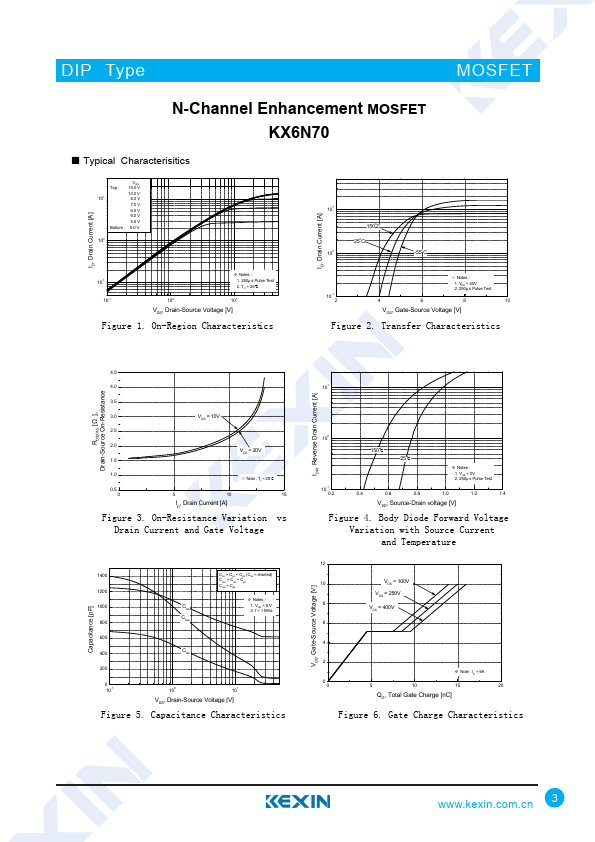

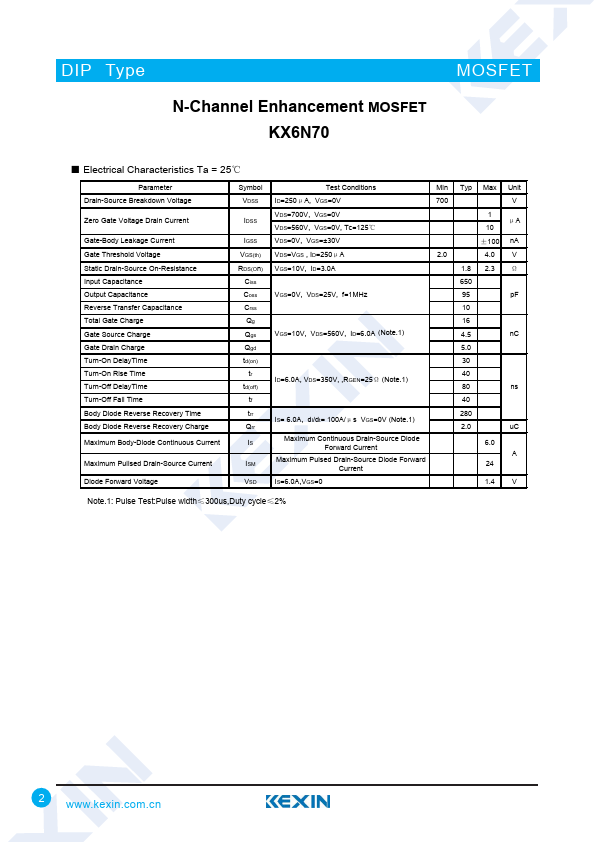

Key Features

s.
VDS (V) = 700V.
ID = 6.0A (VGS = 10V).
RDS(ON) ＜ 1.8Ω (VGS = 10V).
Low gate charge ( typical 16nC) D G S TO-220 9.90 ±0.20 (8.70) ø3.60 ±0.10 4.50 ±0.20 1.30 +0.10.
0.05 2.80 ±0.10 (1.70) 1.30 ±0.10 (3.00) (3.70) 15.90 ±0.20 18.95MAX. 9.20 ±0.20 (1.46) (45 ) 10.08 ±0.30 13.08 ±0.20 (1.00) 1.27 ±0.10 1.52 ±0.10 123 2.54TYP [2.54 ±0.20 ] 0.80 ±0.10 2.54TYP [2.54 ±0.20 ] 10.00 0.20 0.50 +0.10.
0.05 2.40 ±0.20 1 GATE 2 DRAIN 3 SOURCE.
