MMBTH10 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

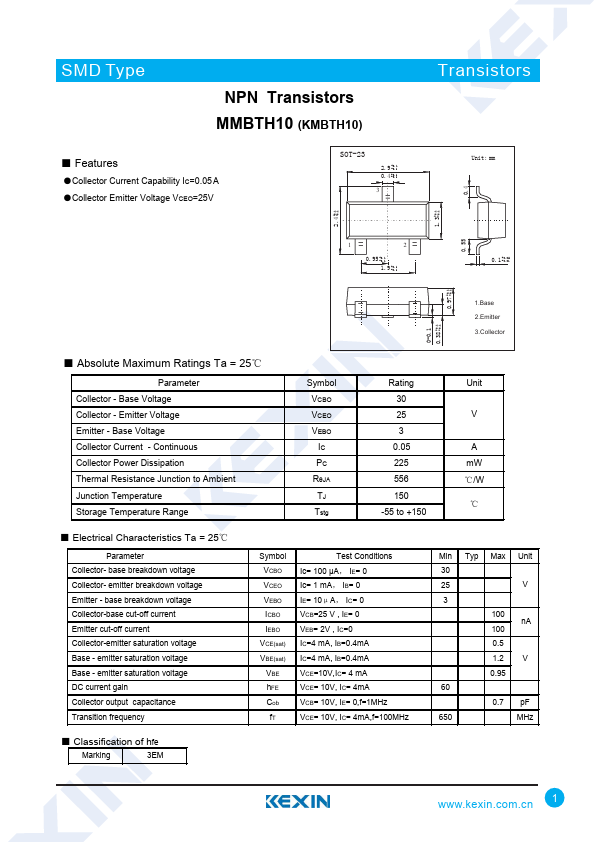

Overview: SMD Type NPN Transistors MMBTH10 (KMBTH10) ■.

Datasheet Details

s.
Collector Current Capability IC=0.05 A.
Collector Emitter Voltage VCEO=25V SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 0.4 Transistors Unit: mm +0.1 1.3 -0.1 +0.1 2.4 -0.1 0.55 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0.1 +0.05 -0.01 +0.1 0.97 -0.1 1.Base 2.Emitter 3.Collector 0-0.1 +0.1 0.38 -0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Therm.
