NDT5N70P - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) = 700V.
  • ID = 5.0 A (VGS = 10V).
  • RDS(ON) ＜ 1.8Ω (VGS = 10V).
  • High Current, High Speed Switching D G S TO-251 1 23 123 Unit: mm.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note1) Tc=25℃ Tc=100℃ Repetitive Pulse Avalanche Energy (Note2) Single Pulse Avalanche Energy (Note2) Peak Diode Recovery dv/dt (Note3) Power Dissipation Tc=25℃ Derate above 25℃ Thermal Resistan.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT014 N-Channel MOSFET VBsemi
NDT014 N-Channel MOSFET Fairchild
NDT014L N-Channel MOSFET Fairchild
NDT01N60 N-Channel Power MOSFET ON Semiconductor
NDT01N60T1G N-Channel Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT5N20 N-Channel MOSFET
NDT50N03 N-Channel MOSFET
NDT06N02 N-Channel MOSFET
NDT06N03 N-Channel MOSFET
NDT110N03 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

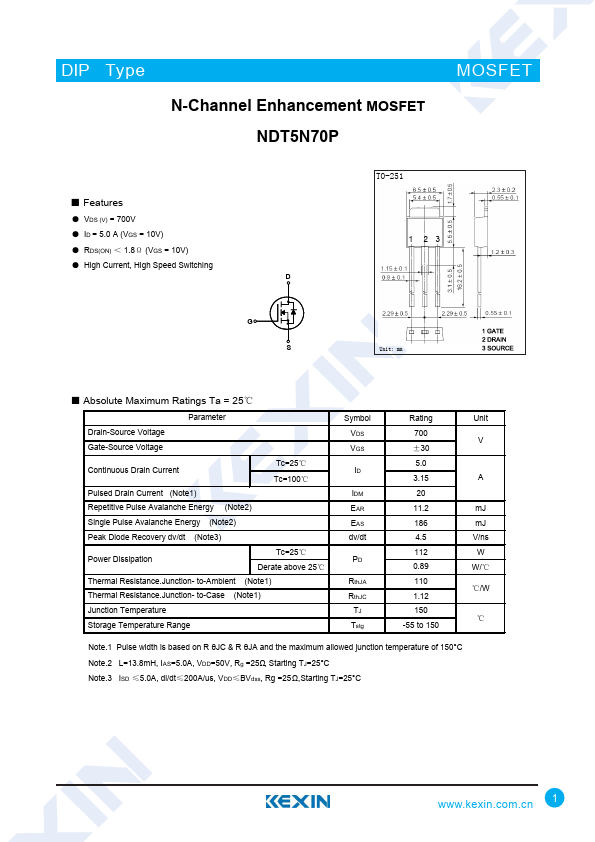

DIP Type N-Channel Enhancement MOSFET NDT5N70P MOSFET ■ Features ● VDS (V) = 700V ● ID = 5.0 A (VGS = 10V) ● RDS(ON) ＜ 1.8Ω (VGS = 10V) ● High Current, High Speed Switching D G S TO-251 1 23 123 Unit: mm ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note1) Tc=25℃ Tc=100℃ Repetitive Pulse Avalanche Energy (Note2) Single Pulse Avalanche Energy (Note2) Peak Diode Recovery dv/dt (Note3) Power Dissipation Tc=25℃ Derate above 25℃ Thermal Resistance.Junction- to-Ambient (Note1) Thermal Resistance.Junction- to-Case (Note1) Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM EAR EAS dv/dt PD RthJA RthJC TJ Tstg Rating 700 ±30 5.0 3.15 20 11.2 186 4.5 112 0.89 110 1.
