NDT06N02 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 22V.
  • ID = 60 A (VGS = 10V).
  • RDS(ON) ＜ 4.1mΩ (VGS = 10V).
  • RDS(ON) ＜ 5.9mΩ (VGS = 4.5V) D + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 5.55 0.15 -0.15 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 1 Gate 2 Drain 3 Source 4 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Ga.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT014 N-Channel MOSFET VBsemi
NDT014 N-Channel MOSFET Fairchild
NDT014L N-Channel MOSFET Fairchild
NDT01N60 N-Channel Power MOSFET ON Semiconductor
NDT01N60T1G N-Channel Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT06N03 N-Channel MOSFET
NDT110N03 N-Channel MOSFET
NDT15N10 N-Channel MOSFET
NDT50N03 N-Channel MOSFET
NDT5N20 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

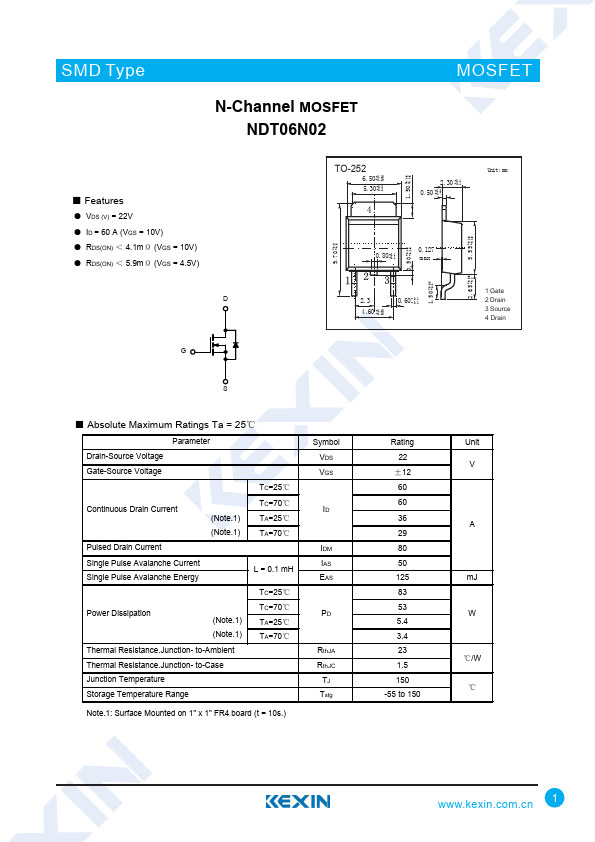

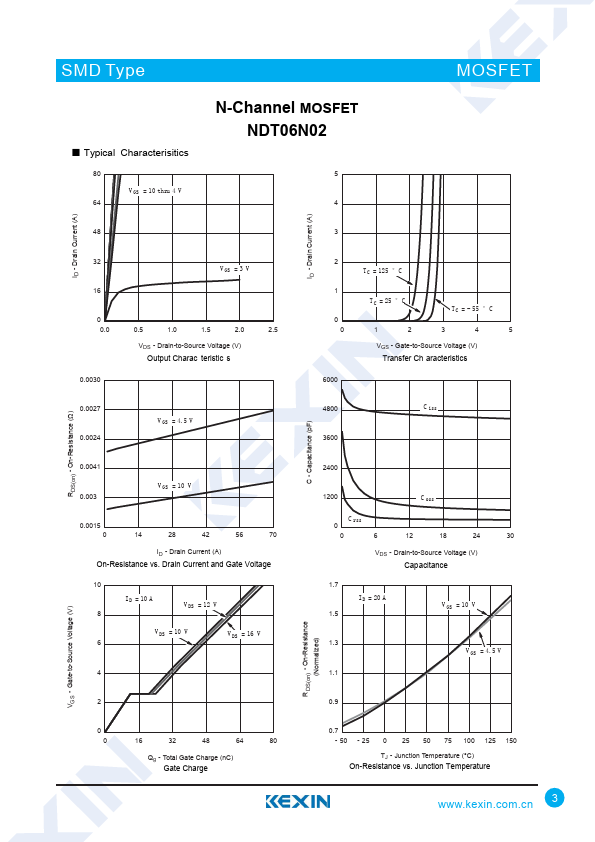

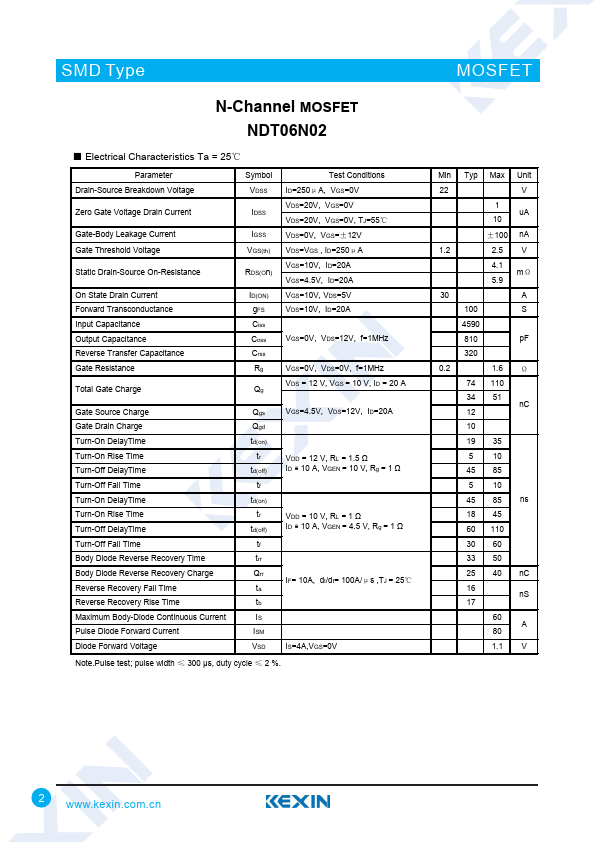

SMD Type N-Channel MOSFET NDT06N02 MOSFET ■ Features ● VDS (V) = 22V ● ID = 60 A (VGS = 10V) ● RDS(ON) ＜ 4.1mΩ (VGS = 10V) ● RDS(ON) ＜ 5.9mΩ (VGS = 4.5V) D + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 5.55 0.15 -0.15 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 1 Gate 2 Drain 3 Source 4 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage TC=25℃ Continuous Drain Current Pulsed Drain Current (Note.1) (Note.1) TC=70℃ TA=25℃ TA=70℃ Single Pulse Avalanche Current Single Pulse Avalanche Energy L = 0.1 mH Power Dissipation (Note.1) (Note.1) Thermal Resistance.
