NX3008NBKS - Dual N-channel Trench MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 350mA.
  • RDS(ON) < 1.4Ω @ VGS = 4.5V.
  • Very fast switching.
  • Low threshold voltage.
  • Trench MOSFET technology.
  • ESD protection up to 2 kV D1 D2 G1 G2 1 S1 4 S2 2 G1 5 G2 3 D2 6 D1 S1 S2.
  • Absolute Maximum Ratings (TJ = 25℃, unless otherwise specified) Parameter Symbol Rating Drain-Source Voltage VDS 30 Gate-Source Voltage VGS ±8 Continuous Drain Current (Note 1) Ta = 25℃ Ta = 100℃ 250 ID 230 Pulsed Drain Current (Single.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NX3008NBKS 350mA dual N-channel Trench MOSFET NXP Semiconductors
NX3008NBKS dual N-channel MOSFET nexperia
NX3008NBK N-channel MOSFET nexperia
NX3008NBK MOSFET NXP
NX3008NBKMB N-channel MOSFET nexperia

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

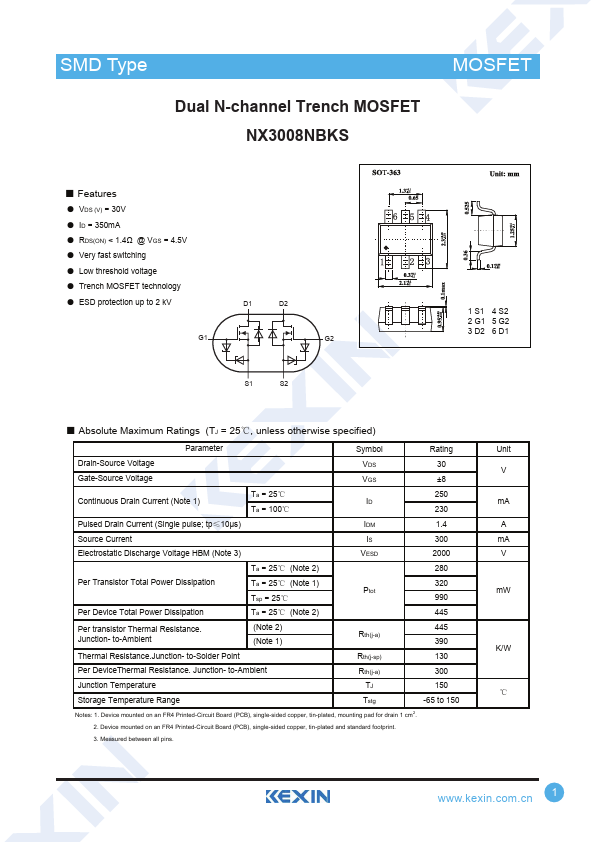

SMD Type TraMnOsiSsFtoErsT Dual N-channel Trench MOSFET NX3008NBKS ■ Features ● VDS (V) = 30V ● ID = 350mA ● RDS(ON) < 1.4Ω @ VGS = 4.5V ● Very fast switching ● Low threshold voltage ● Trench MOSFET technology ● ESD protection up to 2 kV D1 D2 G1 G2 1 S1 4 S2 2 G1 5 G2 3 D2 6 D1 S1 S2 ■ Absolute Maximum Ratings (TJ = 25℃, unless otherwise specified) Parameter Symbol Rating Drain-Source Voltage VDS 30 Gate-Source Voltage VGS ±8 Continuous Drain Current (Note 1) Ta = 25℃ Ta = 100℃ 250 ID 230 Pulsed Drain Current (Single pulse; tp≤10µs) IDM 1.
