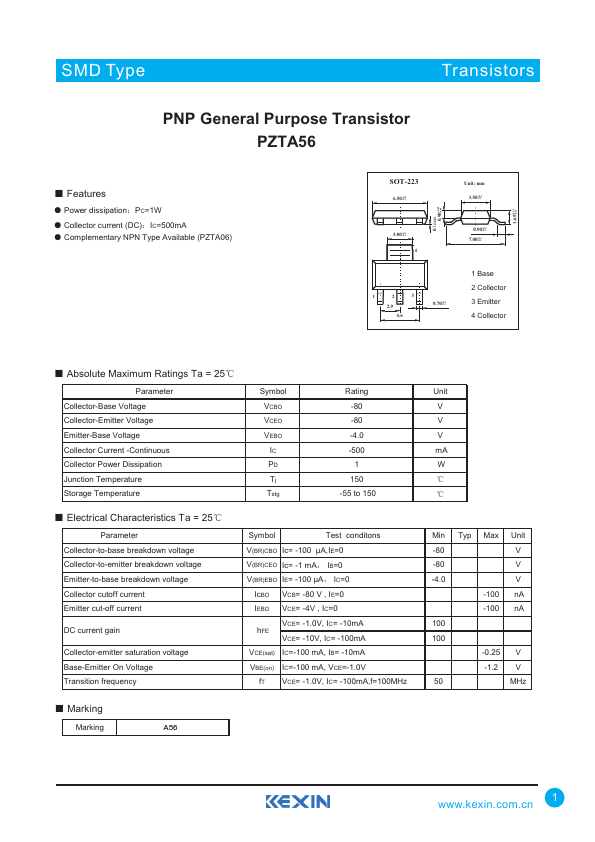

PZTA56 Datasheet PNP General Purpose Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type TransistIoCrs 0.1max +0.05 0.90 -0.05 +0.15 1.65 -0.

Datasheet Details

Part number	PZTA56
Manufacturer	Kexin Semiconductor
File Size	53.01 KB
Description	PNP General Purpose Transistor
Datasheet	PZTA56-Kexin.pdf

s.
Power dissipation：PC=1W.
Collector current (DC)：IC=500mA.
Complementary NPN Type Available (PZTA06) SOT-223 6.50+0.2 -0.2 Unit: mm 3.50+0.2 -0.2 3.00+0.1 -0.1 4 1 2 3 2.9 4.6 0.70+0.1 -0.1 0.90+0.2 -0.2 7.00+0.3 -0.3 1 Base 2 Collector 3 Emitter 4 Collector.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation Junction Temperature Storage Temper.
