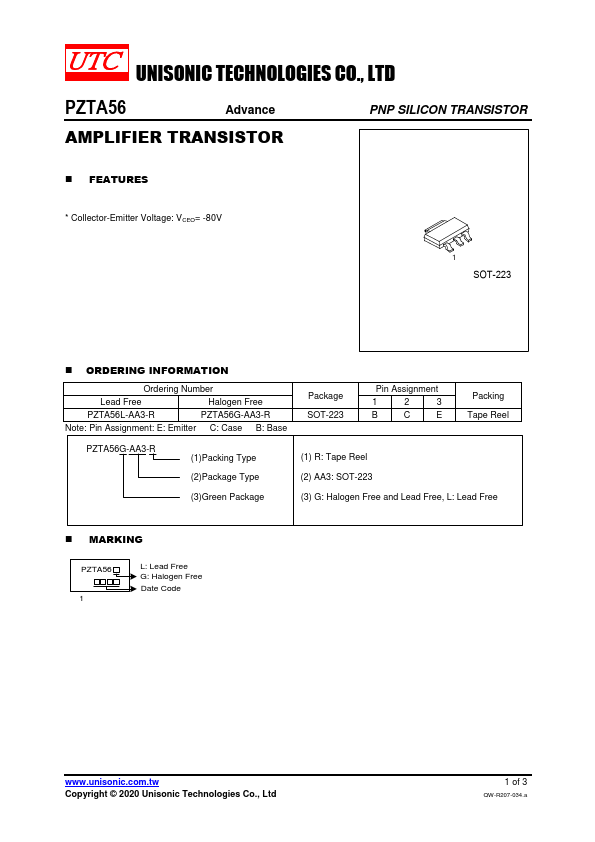

Unisonic Technologies PZTA56
AMPLIFIER TRANSISTOR
| Part No. | PZTA56 |
|---|---|
| Datasheet | PZTA56 Download |
| Manufacturer |  Unisonic Technologies |
| Description | AMPLIFIER TRANSISTOR |
| Buy | Stock & Price |
FEATURES
* Collector-Emitter Voltage: VCEO= -80V 1 SOT-223● ORDERING INFORMATION Ordering Number Lead Free Halogen Free PZTA56L-AA3-R PZTA56G-AA3-R Note: Pin Assignment: E: Emitter C: Case B: Base Package SOT-223 Pin Assignment 1 2 3 B C E Packing Tape Reel PZTA56G-AA3-R (1)Packing Type (1) R: Tape Reel (2)Package Type (2) AA3: SOT-223 (3)Green Package (3) G: Halogen Free and Lead Free, L: Lead Free
● MARKING PZTA56 1 L: Lead Free G: Halogen Free Date Code Copyright © 2020 Unisonic Technologies Co., Ltd 1 of 3 QW-R207-034.a PZTA56 Advance PNP SILICON TRANSISTOR
●

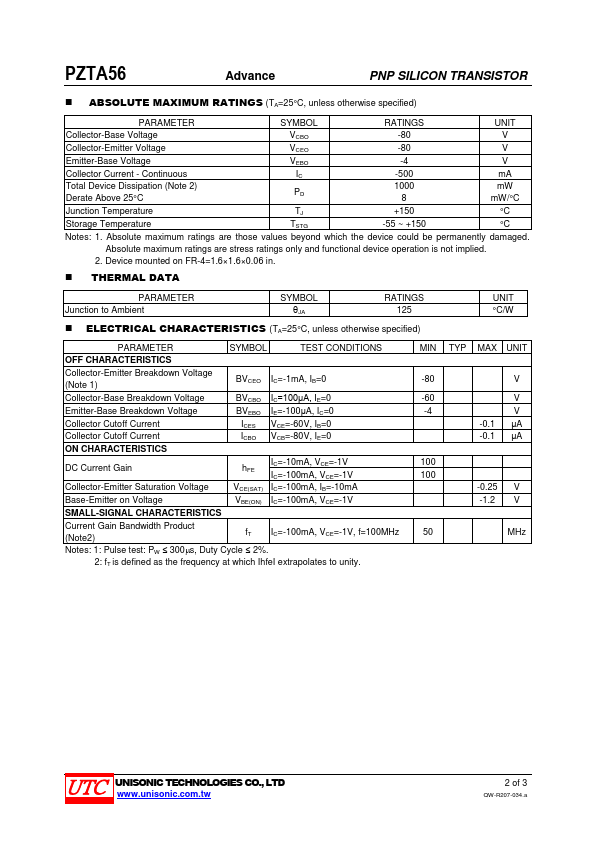

ABSOLUTE MAXIMUM RATINGS
(TA=25°C, unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Collector-Base Voltage VCBO -80 V Collector-Emitter Voltage VCEO -80 V Emitter-Base Voltage VEBO -4 V Collector Current - Continuous IC -500 mA Total Device Dissipation (Note 2) Derate Above 25°C 1000 mW PD 8 mW/°C Junction Temperature TJ +150 °C Storage Temperature TSTG -55 ~ +150 °C Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
