MLSM PZTA56
PNP Transistors
| Part No. | PZTA56 |
|---|---|
| Datasheet | PZTA56 Download |
| Manufacturer |  MLSM |
| Description | PNP Transistors |
| Buy | Stock & Price |
FEATURES
● Low Voltage and High Current● General Purpose Amplifier
APPLICATIONS

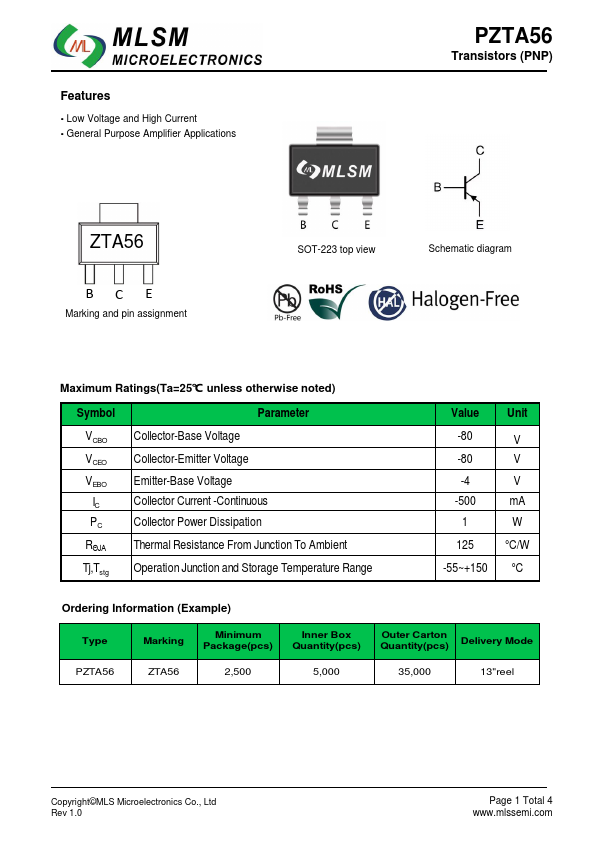

PZTA56 Transistors (PNP) D2 ZTA56 BCE Marking and pin assignment SOT-223 top view Schematic diagramMAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol Parameter VCBO VCEO VEBO IC PC RΘJA Tj,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value -80 -80 -4 -500 1 125 -55~+150 Unit V V V mA W °C/W °C Ordering Information (Example) Type Marking Minimum Package(pcs) Inner Box Quantity(pcs) Outer Carton Quantity(pcs) Delivery Mode PZTA56 ZTA56 2,500 5,000 35,000 13"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4ELECTRICAL CHARACTERISTICS

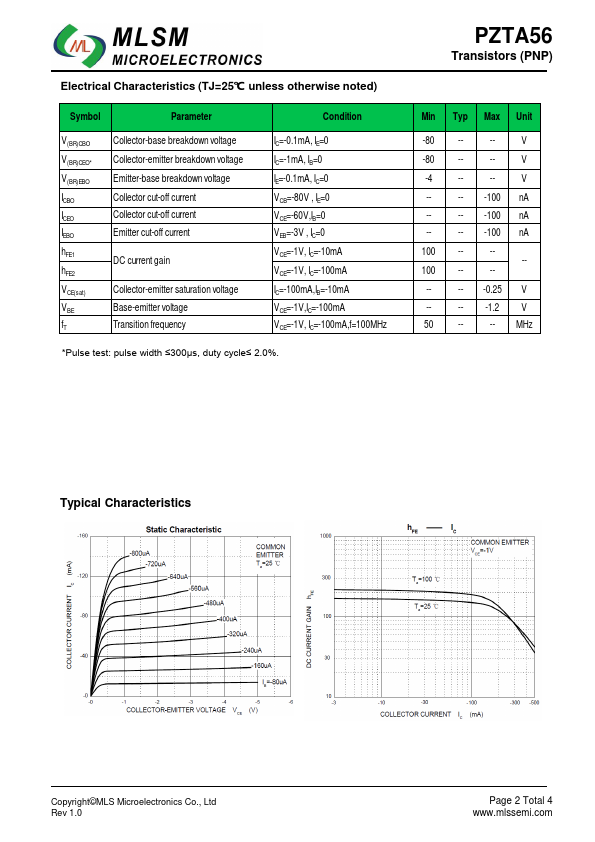

(TJ=25℃ unless otherwise noted) Symbol Parameter Condition V(BR)CBO V(BR)CEO* V(BR)EBO ICBO ICEO IEBO hFE1 hFE2 VCE(sat) VBE fT Collector-base breakdown voltage Collector-emitter...
