SD08C

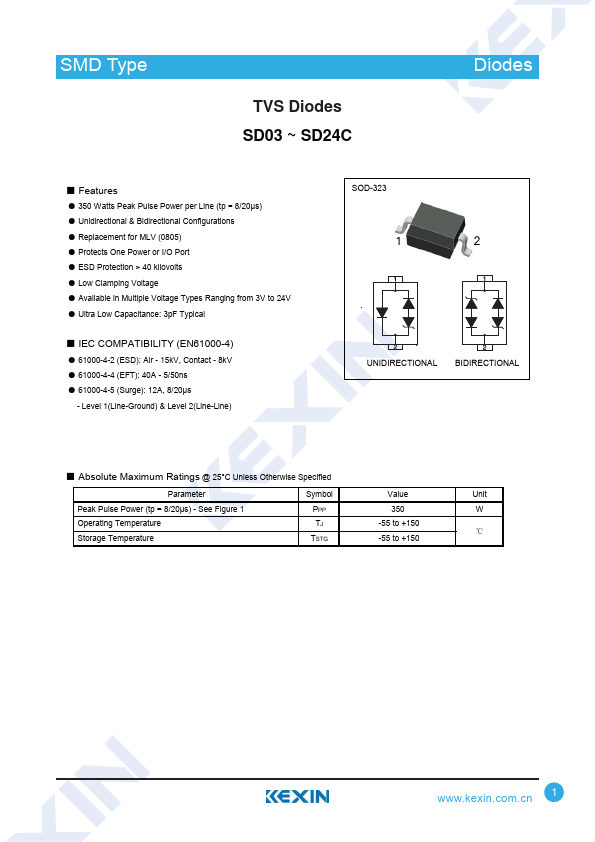

Features
ƽ 350 Watts Peak Pulse Power per Line (tp = 8/20μs) ƽ Unidirectional & Bidirectional Configurations ƽ Replacement for MLV (0805) ƽ Protects One Power or I/O Port ƽ ESD Protection > 40 kilovolts ƽ Low Clamping Voltage ƽ Available in Multiple Voltage Types Ranging from 3V to 24V ƽ Ultra Low Capacitance: 3p F Typical
Ƶ IEC PATIBILITY (EN61000-4)
ƽ 61000-4-2 (ESD): Air
- 15k V, Contact
- 8k V ƽ 61000-4-4 (EFT): 40A
- 5/50ns ƽ 61000-4-5 (Surge): 12A, 8/20μs
- Level 1(Line-Ground) & Level 2(Line-Line)
SOD-323
UNIDIRECTIONAL BIDIRECTIONAL
Ƶ Absolute Maximum Ratings @ 25°C Unless Otherwise Specified
Parameter Peak Pulse Power (tp = 8/20μs)
- See Figure 1 Operating Temperature Storage Temperature
Symbol
Value
Unit
-55 to +150
ć
TSTG
-55 to +150
.kexin..cn 1
SMD Type
T Diodes
TVS Diodes SD03 ~ SD24C

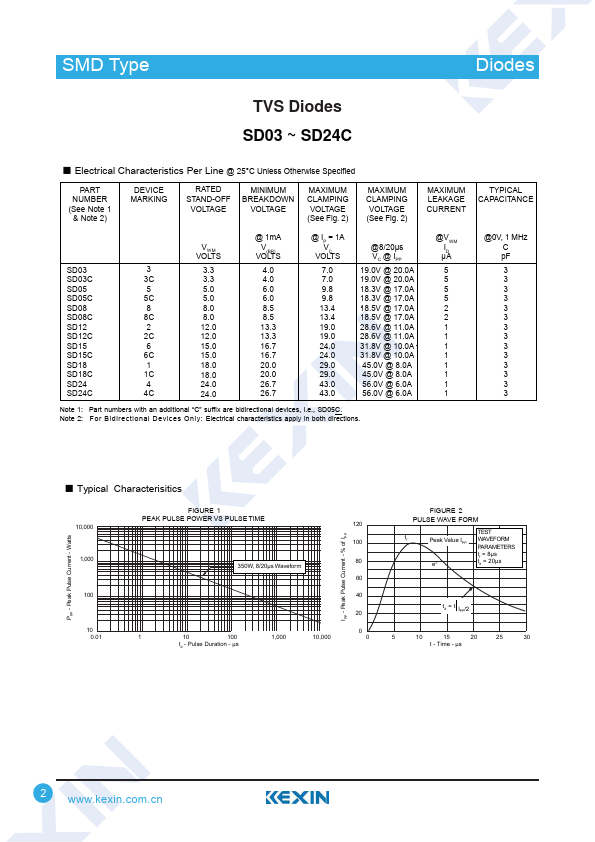

Ƶ Electrical Characteristics Per Line @ 25°C Unless Otherwise Specified
PART NUMBER (See Note 1 & Note 2)
DEVICE MARKING
RATED STAND-OFF
VOLTAGE
MINIM...
