SI2307DS - P-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-3.0A (VGS =-10V).
  • RDS(ON) < 80mΩ (VGS =-10V).
  • RDS(ON) < 140mΩ (VGS =-4.5V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation.

📥 Download Datasheet

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

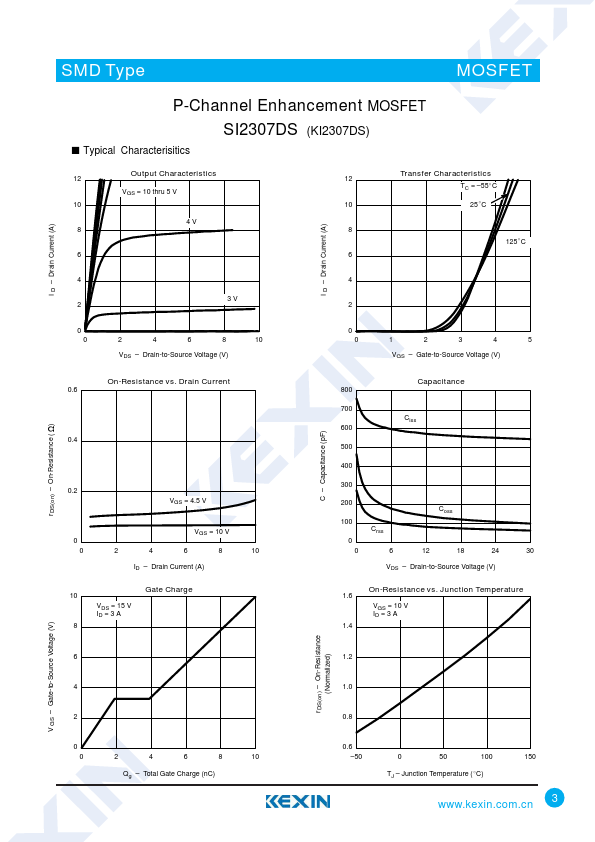

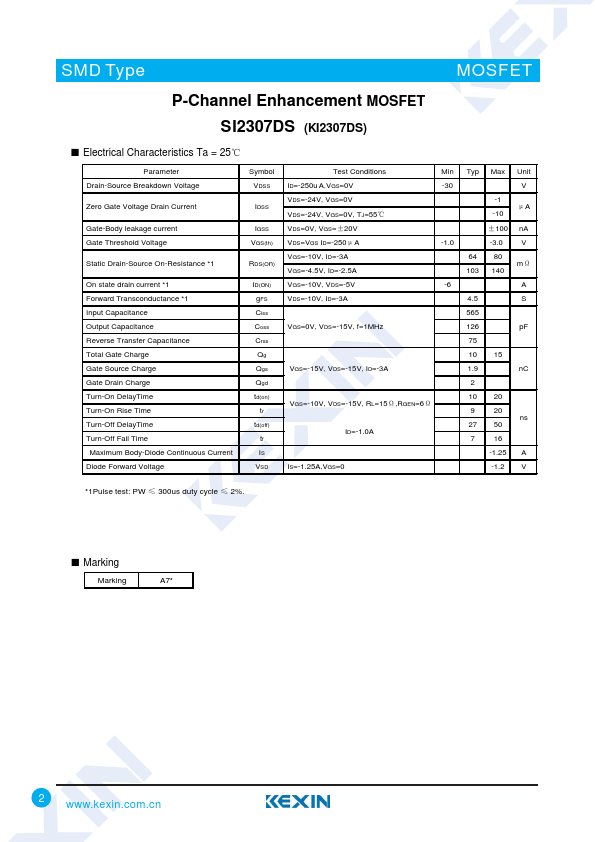

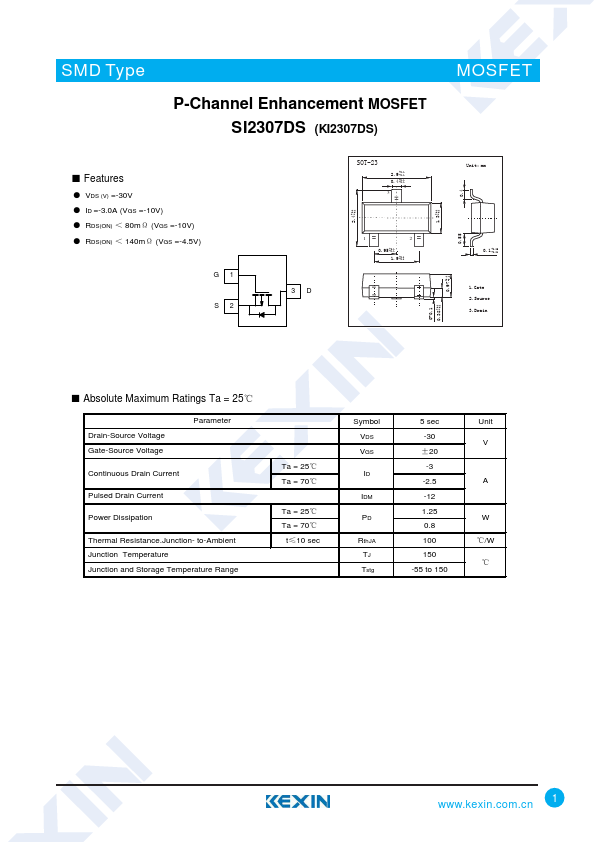

SMD Type P-Channel Enhancement MOSFET SI2307DS (KI2307DS) ■ Features ● VDS (V) =-30V ● ID =-3.0A (VGS =-10V) ● RDS(ON) < 80mΩ (VGS =-10V) ● RDS(ON) < 140mΩ (VGS =-4.5V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Junction Temperature Junction and Storage Temperature Range Ta = 25℃ Ta = 70℃ Ta = 25℃ Ta = 70℃ t≤10 sec Symbol VDS VGS ID IDM PD RthJA TJ Tstg 5 sec -30 ±20 -3 -2.5 -12 1.25 0.
