SI2315BDS - P-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) =-12V.
  • ID =-3.85A (VGS =-4.5V).
  • RDS(ON) ＜ 50mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 65mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 100mΩ (VGS =-1.8V) G1 S2 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 +0.2 2.8 -0.1 3D 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2315BDS P-Channel MOSFET Vishay Siliconix
Si2315BDS P-Channel MOSFET INCHANGE
SI2315BDS-T1-GE3 30V P-Channel MOSFET VBsemi
SI2315DS P-Channel MOSFET Vishay Siliconix
SI2310 N-channel FET MCC

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2312DS N-Channel Enhancement MOSFET
SI2314EDS N-Channel Enhancement MOSFET
SI2318CDS N-Channel MOSFET
SI2318DS N-Channel MOSFET
SI2319DS P-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

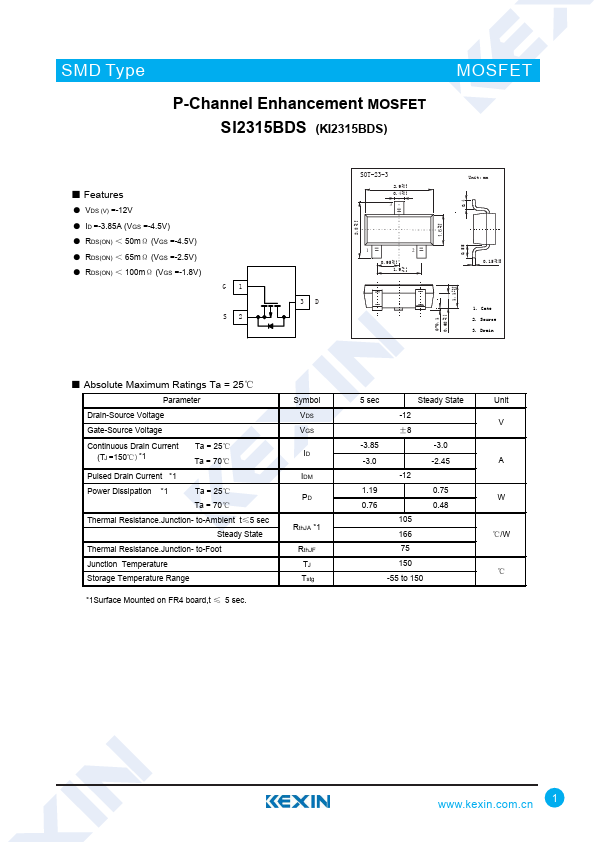

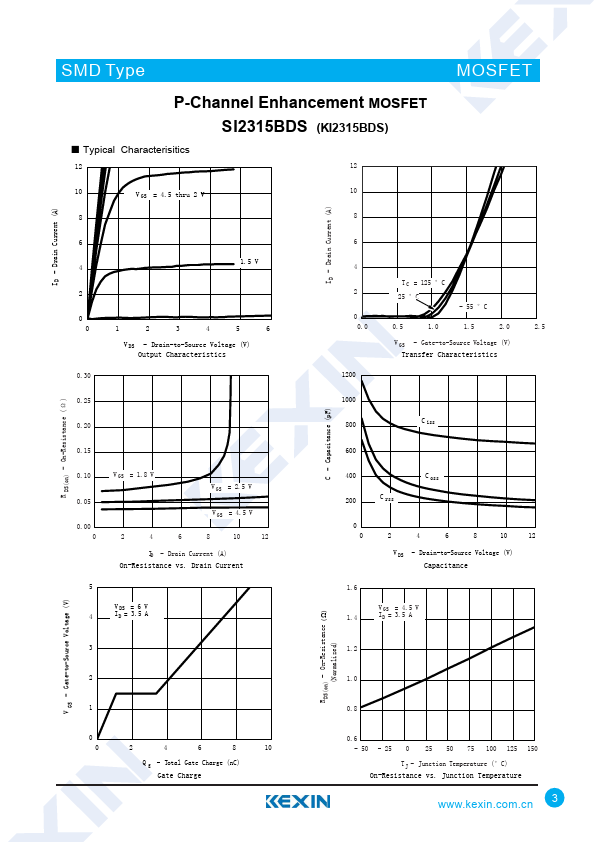

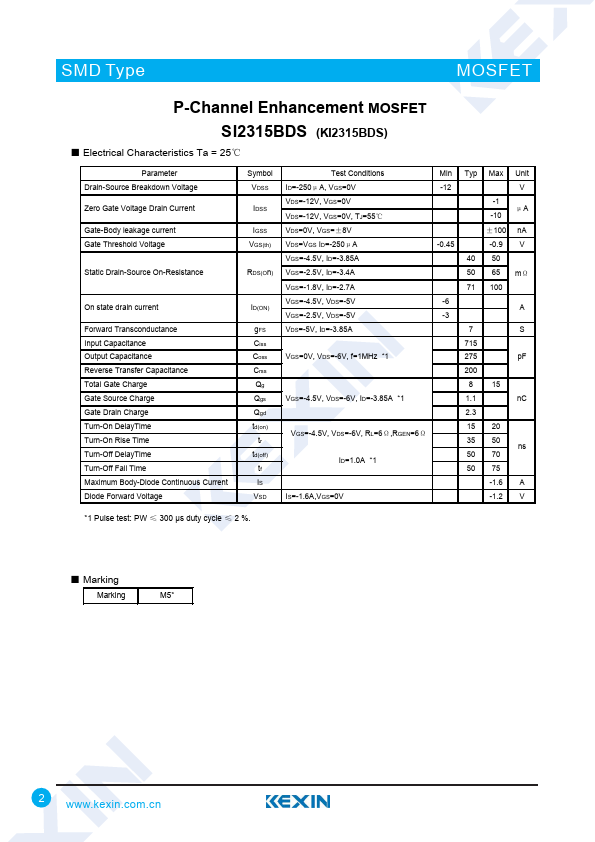

SMD Type P-Channel Enhancement MOSFET SI2315BDS (KI2315BDS) MOSFET ■ Features ● VDS (V) =-12V ● ID =-3.85A (VGS =-4.5V) ● RDS(ON) ＜ 50mΩ (VGS =-4.5V) ● RDS(ON) ＜ 65mΩ (VGS =-2.5V) ● RDS(ON) ＜ 100mΩ (VGS =-1.8V) G1 S2 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 +0.2 2.8 -0.1 3D 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ =150℃)*1 Ta = 25℃ Ta = 70℃ Pulsed Drain Current *1 Power Dissipation *1 Ta = 25℃ Ta = 70℃ Thermal Resistance.Junction- to-Ambient t≤5 sec Steady State Thermal Resistance.
