SI2343DS - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-4 A (VGS =-10V).
  • RDS(ON) ＜ 53mΩ (VGS =-10V).
  • RDS(ON) ＜ 86mΩ (VGS =-4.5V) G1 S2 3D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA = 25 °C TA = 70 °C Pulsed Drain Curren.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2343DS P-Channel MOSFET Vishay Siliconix
SI2343CDS P-Channel MOSFET VISHAY
Si2341 P-Channel 30-V (D-S) MOSFET Tuofeng Semiconductor
SI2341DS P-Channel MOSFET Vishay Siliconix
SI2341DS-T1-GE3 30V P-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2341DS P-Channel Enhancement MOSFET
SI2341DS-HF P-Channel MOSFET
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET
SI2301BDS P-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

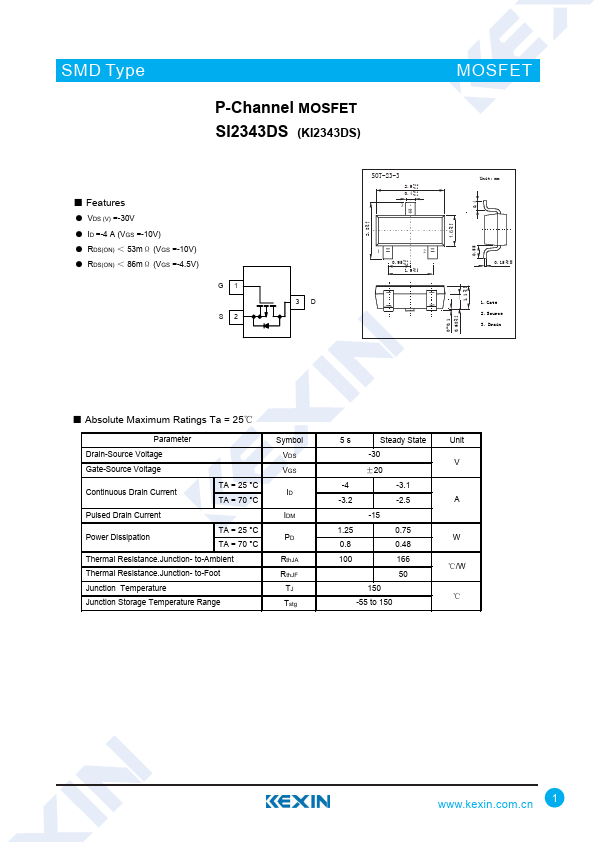

SMD Type P-Channel MOSFET SI2343DS (KI2343DS) MOSFET ■ Features ● VDS (V) =-30V ● ID =-4 A (VGS =-10V) ● RDS(ON) ＜ 53mΩ (VGS =-10V) ● RDS(ON) ＜ 86mΩ (VGS =-4.5V) G1 S2 3D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA = 25 °C TA = 70 °C Pulsed Drain Current Power Dissipation TA = 25 °C TA = 70 °C Thermal Resistance.Junction- to-Ambient Thermal Resistance.
