SIR422DP - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 40V.
  • ID = 40 A (VGS = 10V).
  • RDS(ON) ＜ 7.5 mΩ (VGS = 10V).
  • RDS(ON) ＜ 9 mΩ (VGS = 4.5V) D G S PowerPAK ® SO-8 (DFN5X6) 6.15 mm D 8 D 7 D 6 D 5 S 1 S 5.15 mm 2 S 3 G 4 Bottom View.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SIR422DP N-Channel 40-V (D-S) MOSFET Vishay
SiR424DP N-Channel MOSFET Vishay
SiR426DP N-Channel MOSFET Vishay
SIR402DP N-Channel MOSFET Vishay Siliconix
SiR404DP N-Channel MOSFET Vishay

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

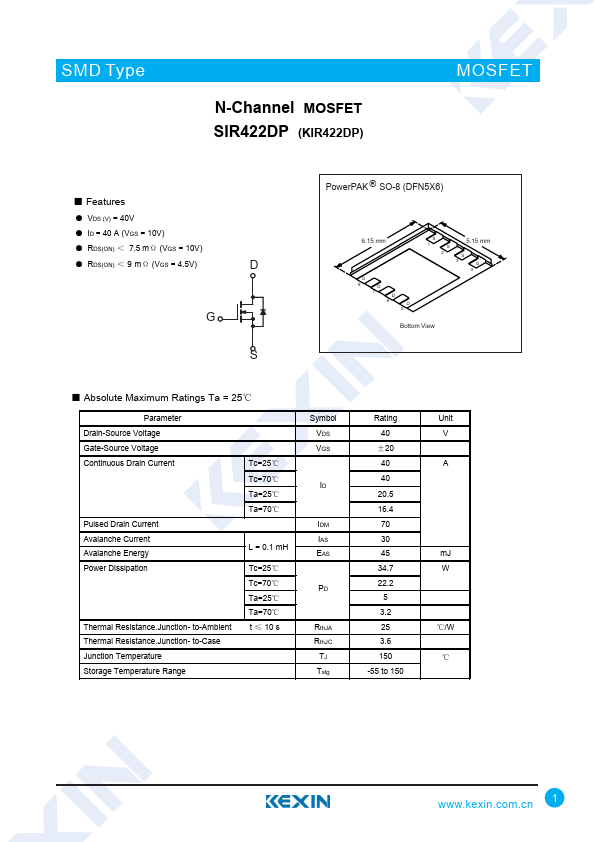

SMD Type N-Channel MOSFET SIR422DP (KIR422DP) MOSFET ■ Features ● VDS (V) = 40V ● ID = 40 A (VGS = 10V) ● RDS(ON) ＜ 7.5 mΩ (VGS = 10V) ● RDS(ON) ＜ 9 mΩ (VGS = 4.5V) D G S PowerPAK ® SO-8 (DFN5X6) 6.15 mm D 8 D 7 D 6 D 5 S 1 S 5.15 mm 2 S 3 G 4 Bottom View ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Tc=25℃ Tc=70℃ Ta=25℃ Ta=70℃ L = 0.1 mH Tc=25℃ Tc=70℃ Ta=25℃ Ta=70℃ t ≤ 10 s Symbol VDS VGS ID IDM IAS EAS PD RthJA RthJC TJ Tstg Rating 40 ±20 40 40 20.5 16.4 70 30 45 34.7 22.2 5 3.2 25 3.
