WPM2005B - P+Schottky Hybrid MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-2.7 A (VGS =-10V).
  • RDS(ON) ＜ 125mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 160mΩ (VGS =-2.5V).
  • Ultra Low VF Schottky DFN3X2-8L 0.35 (max) 0.24 (min) Unit:mm 0.05 (max) 1.70 BSC 2.00 BSC 0.65 BSC 3.00 BSC 0.25 (max) 0.08 (min) 0.80 ± 0.1 0.40 (max) 0.20 (min) 0.10 (max) 1 A A2 S3 G4 8 C 7C 6 D D 5.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Peak Repetitive Reverse Voltage DC Blocking Voltage Continuous Drain.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
WPM2005B Power MOSFET and Schottky Diode WillSEMI
WPM2005 Power MOSFET and Schottky Diode WillSEMI
WPM2006 Power MOSFET and Schottky Diode WillSEMI
WPM2009D P-MOSFET WillSEMI
WPM2014 Single P-Channel Power MOSFET WillSEMI

Other Datasheets by Kexin Semiconductor

Part Number Description
WPM2015 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

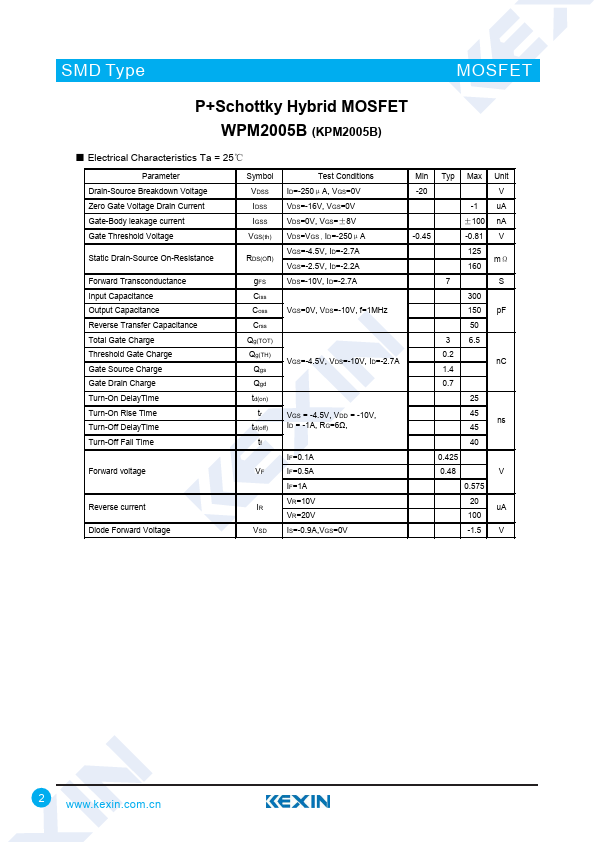

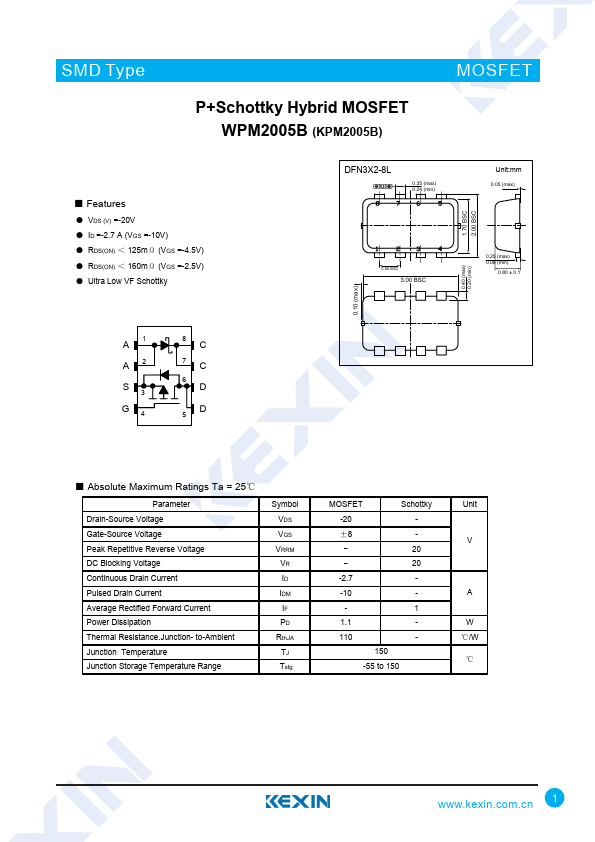

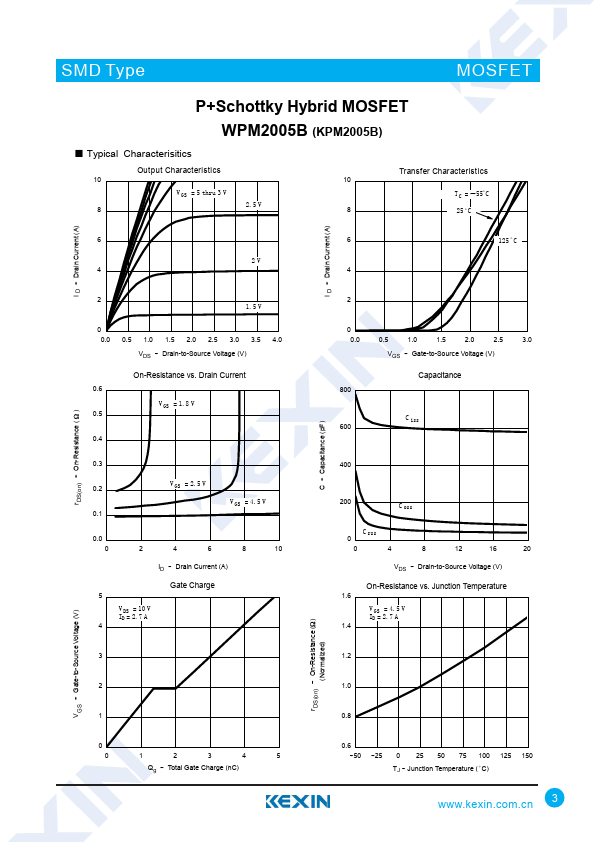

SMD Type P+Schottky Hybrid MOSFET WPM2005B (KPM2005B) MOSFET ■ Features ● VDS (V) =-20V ● ID =-2.7 A (VGS =-10V) ● RDS(ON) ＜ 125mΩ (VGS =-4.5V) ● RDS(ON) ＜ 160mΩ (VGS =-2.5V) ● Ultra Low VF Schottky DFN3X2-8L 0.35 (max) 0.24 (min) Unit:mm 0.05 (max) 1.70 BSC 2.00 BSC 0.65 BSC 3.00 BSC 0.25 (max) 0.08 (min) 0.80 ± 0.1 0.40 (max) 0.20 (min) 0.10 (max) 1 A A2 S3 G4 8 C 7C 6 D D 5 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Peak Repetitive Reverse Voltage DC Blocking Voltage Continuous Drain Current Pulsed Drain Current Average Rectified Forward Current Power Dissipation Thermal Resistance.
