LSIC2SD120D10A
LSIC2SD120D10A is 10A SiC Schottky Barrier Diode manufactured by Littelfuse.

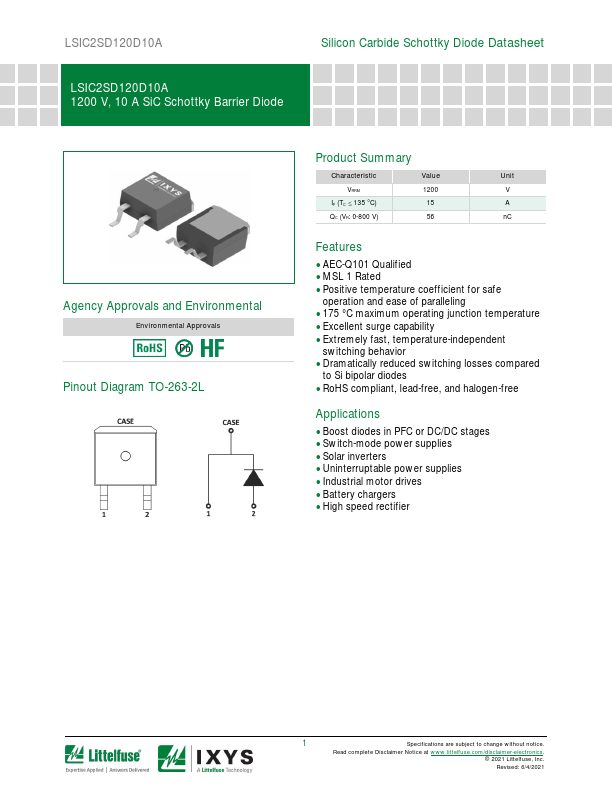

LSIC2SD120D10A 1200 V, 10 A SiC Schottky Barrier Diode
Silicon Carbide Schottky Diode Datasheet
Agency Approvals and Environmental
Environmental Approvals
Pinout Diagram TO-263-2L
Product Summary
Characteristic VRRM
IF (TC 135 °C) QC (VR: 0-800 V)
Value 1200
15 56
Unit V A nC
Features
- AEC-Q101 Qualified
- MSL 1 Rated
- Positive temperature coefficient for safe operation and ease of paralleling
- 175 °C maximum operating junction temperature
- Excellent surge capability
- Extremely fast, temperature-independent switching behavior
- Dramatically reduced switching losses pared to Si bipolar diodes
- RoHS pliant, lead-free, and halogen-free
Applications
- Boost...
