FK-260SA-09450
FK-260SA-09450 is Carbon-brush motors manufactured by MABUCHI MOTOR.
- Part of the FK-260SA comparator family.
- Part of the FK-260SA comparator family.

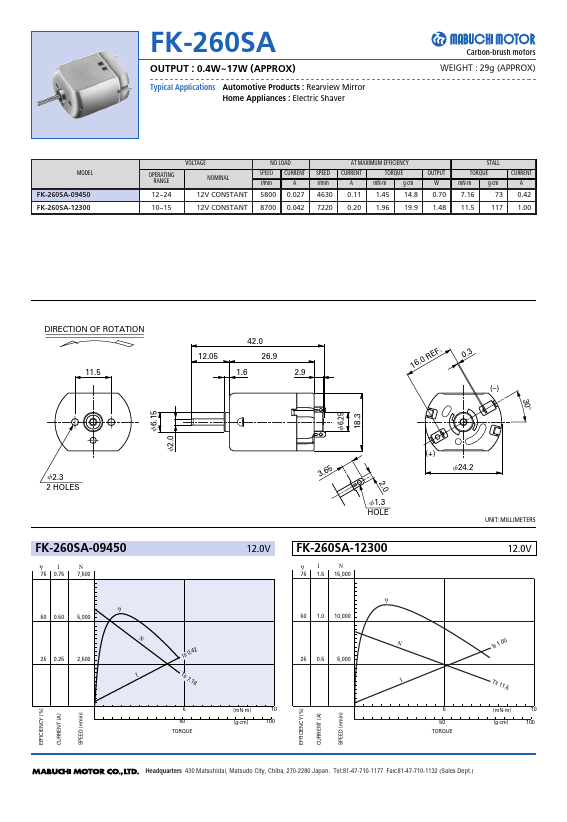

FK-260SA
OUTPUT : 0.4W~17W (APPROX)
Typical Applications Automotive Products : Rearview Mirror Home Appliances : Electric Shaver
Carbon-brush motors WEIGHT : 29g (APPROX)
MODEL
FK-260SA-09450 FK-260SA-12300
OPERATING RANGE
12~24
10~15
VOLTAGE NOMINAL
12V CONSTANT 12V CONSTANT
NO LOAD
SPEED CURRENT r/min
5800 0.027
8700 0.042
SPEED r/min
AT MAXIMUM EFFICIENCY
CURRENT
TORQUE
A m N- m g- cm
4630 0.11 1.45 14.8
7220 0.20 1.96 19.9
OUTPUT W
0.70 1.48
STALL
TORQUE m N- m g- cm
CURRENT A
73 0.42
11.5 117 1.00
DIRECTION OF ROTATION 11.5
16.0 REF.
0.3 (- )
6.15...
