MX25L6439E

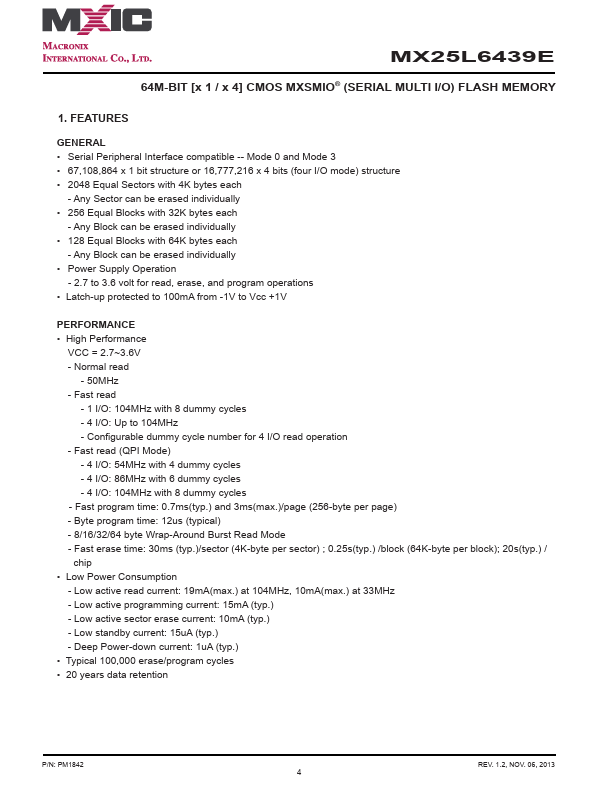

FEATURES
GENERAL
- Serial Peripheral Interface patible -- Mode 0 and Mode 3
- 67,108,864 x 1 bit structure or 16,777,216 x 4 bits (four I/O mode) structure
- 2048 Equal Sectors with 4K bytes each
- Any Sector can be erased individually
- 256 Equal Blocks with 32K bytes each
- Any Block can be erased individually
- 128 Equal Blocks with 64K bytes each
- Any Block can be erased individually
- Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
VCC = 2.7~3.6V
- Normal read
- 50MHz
- Fast read
- 1 I/O: 104MHz with 8 dummy cycles
- 4 I/O: Up to 104MHz
- Configurable dummy cycle number for 4 I/O read operation
- Fast read (QPI Mode)
- 4 I/O: 54MHz with 4 dummy cycles
- 4 I/O: 86MHz with 6 dummy cycles
- 4 I/O: 104MHz with 8 dummy cycles
- Fast program time: 0.7ms(typ.) and 3ms(max.)/page (256-byte per page)
- Byte program time: 12us (typical)
- 8/16/32/64 byte...
