MCL9913K3 Datasheet | Micro Commercial Components

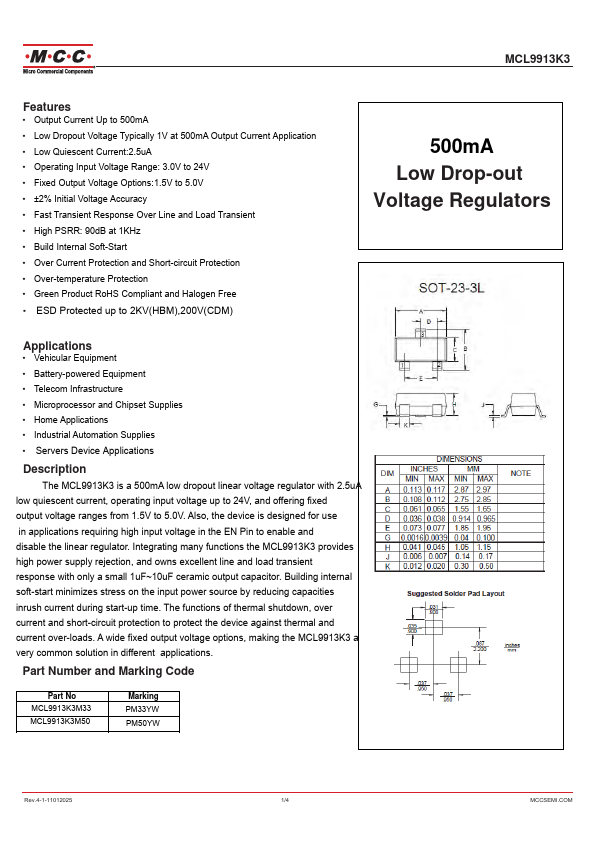

Features - Output Current Up to 500mA - Low Dropout Voltage Typically 1V at 500mA Output Current Application - Low Quiescent Current:2.5uA - Operating Input Voltage Range: 3.0V to 24V - Fixed Output Voltage Options:1.5V to 5.0V - ±2% Initial Voltage Accuracy - Fast Transient Response Over Line and Load Transient - High PSRR: 90dB at 1KHz - Build Internal Soft-Start - Over Current Protection and Short-circuit Protection - Over-temperature Protection - Green Product RoHS pliant and Halogen Free - ESD Protected up to 2KV(HBM),200V(CDM) 500mA Low Drop-out Voltage Regulators Applications - Vehicular Equipment - Battery-powered Equipment - Tele Infrastructure - Microprocessor and Chipset Supplies - Home Applications - Industrial Automation Supplies - Servers Device Applications Description The MCL9913K3 is a 500mA low dropout linear voltage regulator with 2.5uA low quiescent current, operating input voltage up to 24V, and offering fixed output voltage ranges from 1.5V to 5.0V. Also, the device is designed for use in applications requiring high input voltage in the EN Pin to enable and disable the linear regulator. Integrating many functions the MCL9913K3 provides high power supply rejection, and owns excellent line and load transient response with only a small 1uF~10uF ceramic output capacitor. Building internal soft-start minimizes stress on the input power source by reducing capacities inrush current during start-up time. The functions of thermal shutdown, over current and short-circuit protection to protect the device against thermal and current over-loads. A wide fixed output voltage options, making the MCL9913K3 a very mon solution in different applications. Part Number and Marking Code Part No MCL9913K3M33 MCL9913K3M50 Marking PM33YW...
