MCL9913K5 - 500mA Low Drop-out Voltage Regulators

General Description

The MCL9913K5 is a 500mA low dropout linear voltage regulator with 2.5uA low quiescent current, operating input voltage up to 24V, and offering fixed output voltage ranges from 1.5V to 5.0V.

Key Features

  • Output Current Up to 500mA.
  • Low Dropout Voltage Typically 1V at 500mA Output Current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MCL-5 Edison Fuses - General Purpose Midget Class MCL ETC
MCL1 Edison Fuses - General Purpose Midget Class MCL ETC
MCL1-5 Edison Fuses - General Purpose Midget Class MCL ETC
MCL10 Edison Fuses - General Purpose Midget Class MCL ETC
MCL101A Small Signal Schottky Barrier Diodes GOODARK

Other Datasheets by Micro Commercial Components

Part Number Description
MCL4448 500mW 100V Silicon Epitaxial Diode
MCL5221 500mW Zener Diode
MCL5222 500mW Zener Diode
MCL5223 500mW Zener Diode
MCL5224 500mW Zener Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

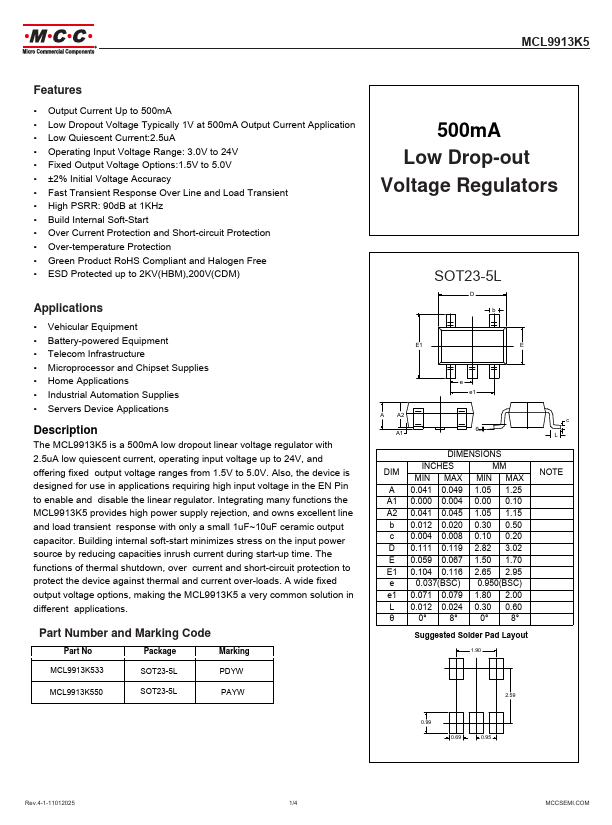

MCL9913K5 Features • Output Current Up to 500mA • Low Dropout Voltage Typically 1V at 500mA Output Current Application • Low Quiescent Current:2.5uA • Operating Input Voltage Range: 3.0V to 24V • Fixed Output Voltage Options:1.5V to 5.
