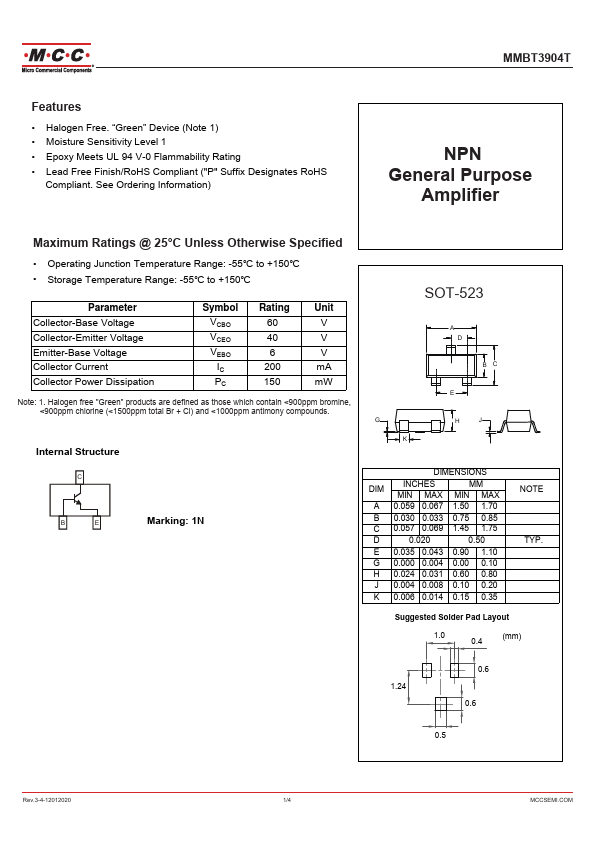

MMBT3904T - NPN General Purpose Amplifier

Key Features

  • Halogen free available upon request by adding suffix "-HF".
  • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) x Operating and Storage Junction Temperatures: -55ć to 150ć.
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisure Sensitivity Level 1.
  • Collector Current: 0.2A.

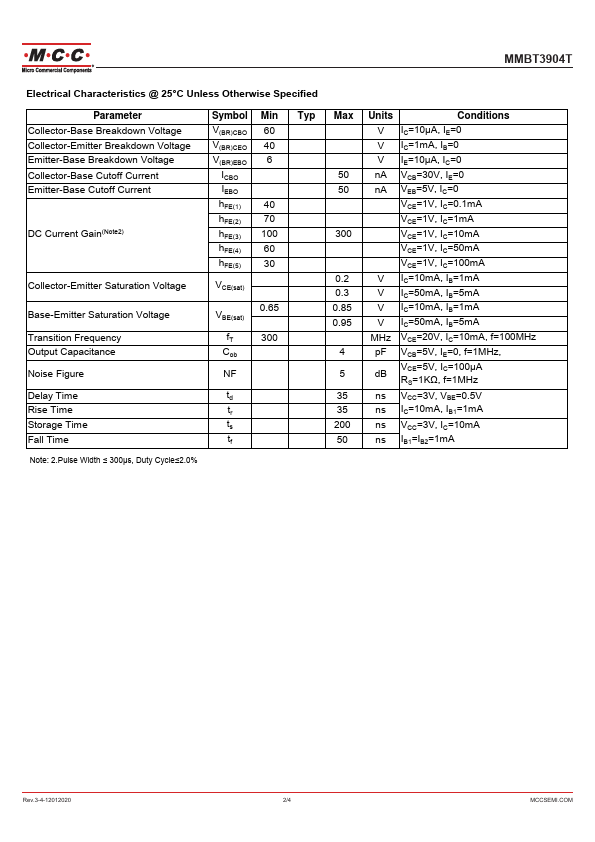

  • Marking: 1N Electrical Characteristics @ 25qC Unless Otherwise Specified Symbol Parameter Min Max Units OFF.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBT3904T NPN Epitaxial Silicon Transistor Fairchild Semiconductor
MMBT3904T NPN Silicon General Purpose Transistors SeCoS
MMBT3904T GENERAL PURPOSE TRANSISTORS TIPTEK
MMBT3904T NPN Transistor JinYu
MMBT3904T NPN SWITCHING TRANSISTOR GME

Other Datasheets by Micro Commercial Components

Part Number Description
MMBT3904M NPN Plastic-Encapsulate Transistors
MMBT3906HE3 PNP Amplifier
MMBT3906T PNP General Purpose Transistor
MMBT1616A-G NPN General Purpose Amplifier
MMBT1616A-L NPN General Purpose Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# MMBT3904T Features • Halogen free available upon request by adding suffix "-HF" • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) x Operating and Storage Junction Temperatures: -55ć to 150ć • Epoxy meets UL 94 V-0 flammability rating • Moisure Sensitivity Level 1 • Collector Current: 0.2A • Marking: 1N Electrical Characteristics @ 25qC Unless Otherwise Specified Symbol Parameter Min Max Units OFF CHARACTERISTICS V(BR)CEO Collector-Emitter Breakdown Voltage* 40 Vdc (IC=1.
