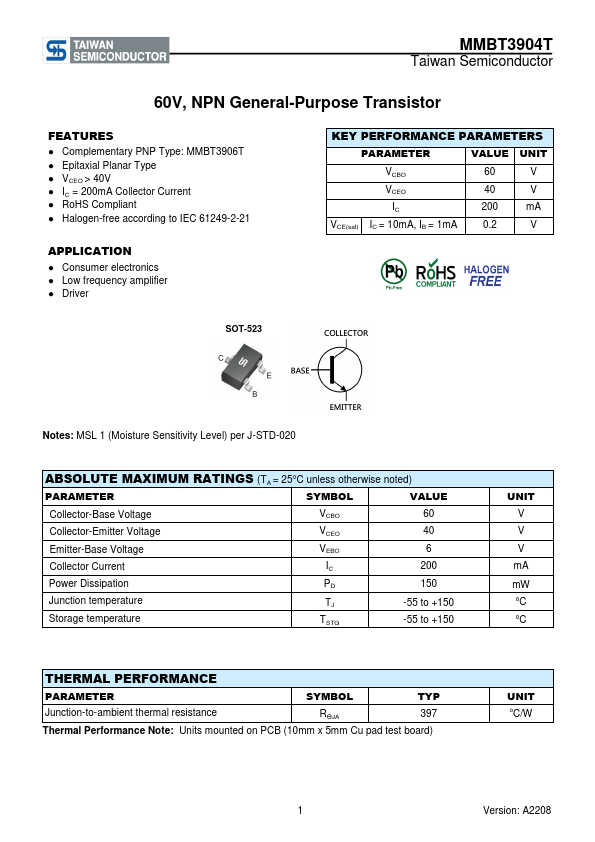

Datasheet Summary
Taiwan Semiconductor
60V, NPN General-Purpose Transistor
Features
- plementary PNP Type: MMBT3906T
- Epitaxial Planar Type
- VCEO > 40V
- IC = 200mA Collector Current
- RoHS pliant
- Halogen-free according to IEC 61249-2-21
APPLICATION
- Consumer electronics
- Low frequency amplifier
- Driver
KEY PERFORMANCE PARAMETERS
PARAMETER
VALUE UNIT
VCBO
VCEO
200 mA
VCE(sat) IC = 10mA, IB = 1mA
SOT-523
Notes: MSL 1 (Moisture Sensitivity Level) per...
