MLSM 1SS401
SCHOTTKY BARRIER DIODE
| Part No. | 1SS401 |
|---|---|
| Datasheet | 1SS401 Download |
| Manufacturer |  MLSM |
| Description | SCHOTTKY BARRIER DIODE |
| Buy | Stock & Price |
FEATURES
● Low Forward Voltage● Low reverse current

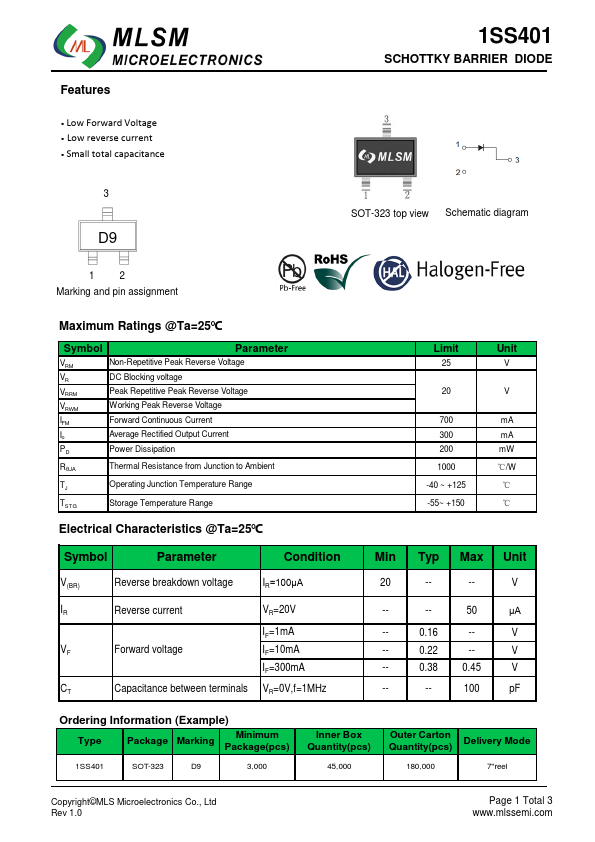

● Small total capacitance 1SS401 SCHOTTKY BARRIER DIODE 3 SOT-323 top view Schematic diagram D9 1 2 Marking and pin assignment
MAXIMUM RATINGS
@Ta=25℃ Symbol Parameter VRM VR VRRM VRWM IFM Io Non-Repetitive Peak Reverse Voltage DC Blocking voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage Forward Continuous Current Average Rectified Output Current PD Power Dissipation RθJA Thermal Resistance from Junction to Ambient TJ Operating Junction Temperature Range TST G Storage Temperature RangeELECTRICAL CHARACTERISTICS

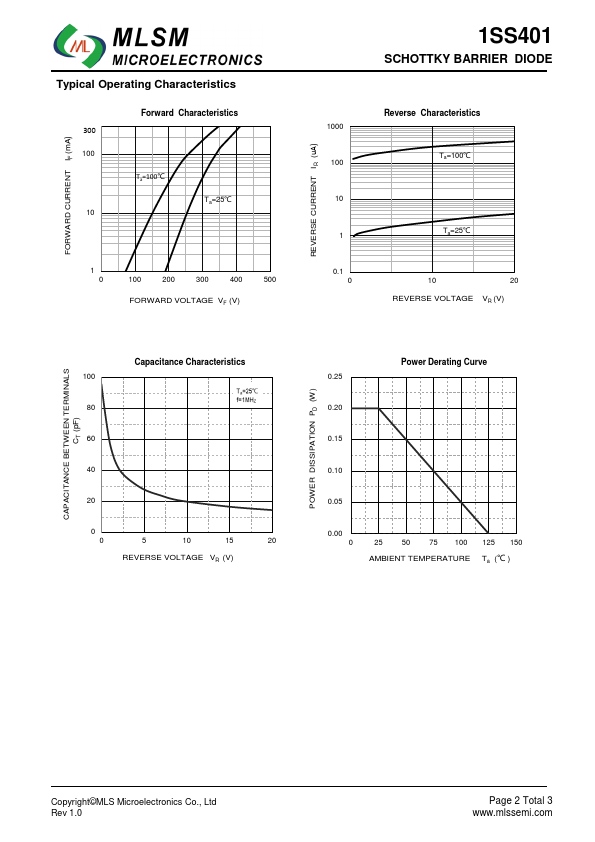

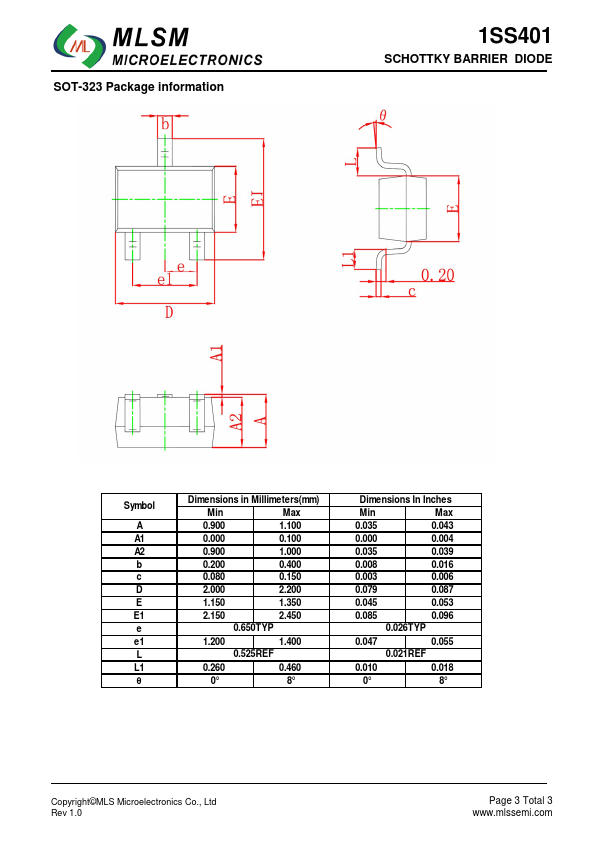

@Ta=25℃ Symbol Parameter Condition V(BR) Reverse breakdown voltage IR=100μA IR Reverse current VR=20V VF Forward voltage IF=1mA IF=10mA IF=300mA CT Capacitance between terminals VR=0V,f=1MHz Limit 25 20 700 300 200 1000 -40 ~ +125 -55~ +150 Unit V V mA mA mW ℃/W ℃ ℃ Min Typ Max Unit 20 -- -- V -- -- 50 μA -- 0.16 -- V -- 0.22 -- V -- 0.38 0.45 V -- -- 100 pF Ordering Information (Example) Type Package...
