Complements to 2SB1188
2SD1766
Transistor (NPN)
X:Rank
DBX
Rank:X
BC E
Marking and pin assignment
SOT-89-3L top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO VCEO VEBO IC PC TJ,Tstg
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range
Value
Unit
40
V
32
V.
Full PDF Text Transcription for 2SD1766 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SD1766. For precise diagrams, and layout, please refer to the original PDF.
Features • Low VCE(sat).VCE(sat)=0.16V(Typ.)(IC/IB=2A/0.2A) • Complements to 2SB1188 2SD1766 Transistor (NPN) X:Rank DBX Rank:X BC E Marking and pin assignment SOT-89-3L ...

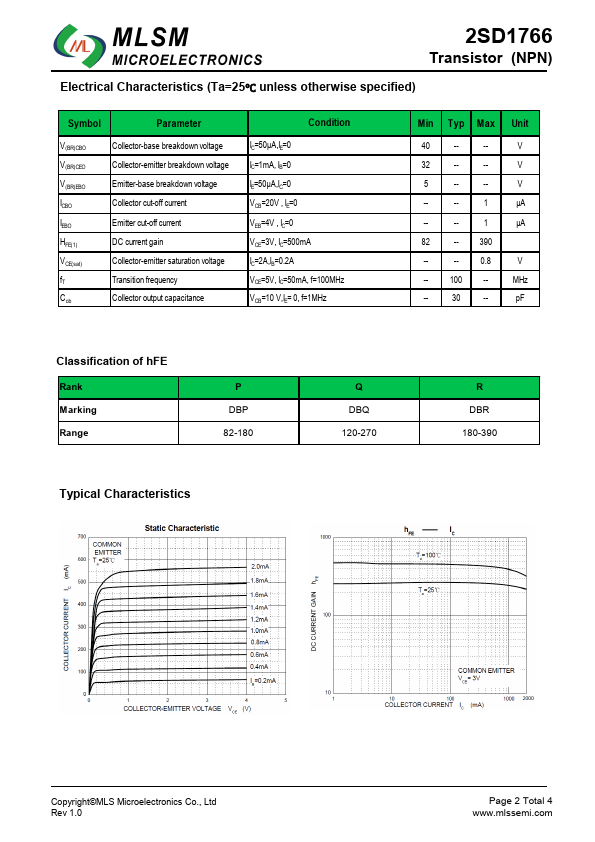

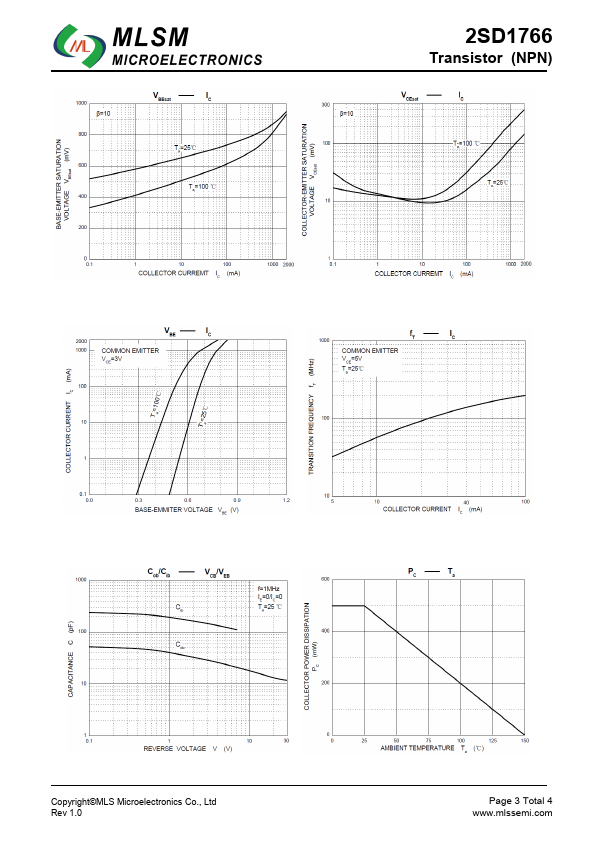

2SD1766 Datasheet
