MLSM 2SD2098
NPN Transistor
| Part No. | 2SD2098 |
|---|---|
| Datasheet | 2SD2098 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistor |
| Buy | Stock & Price |
FEATURES

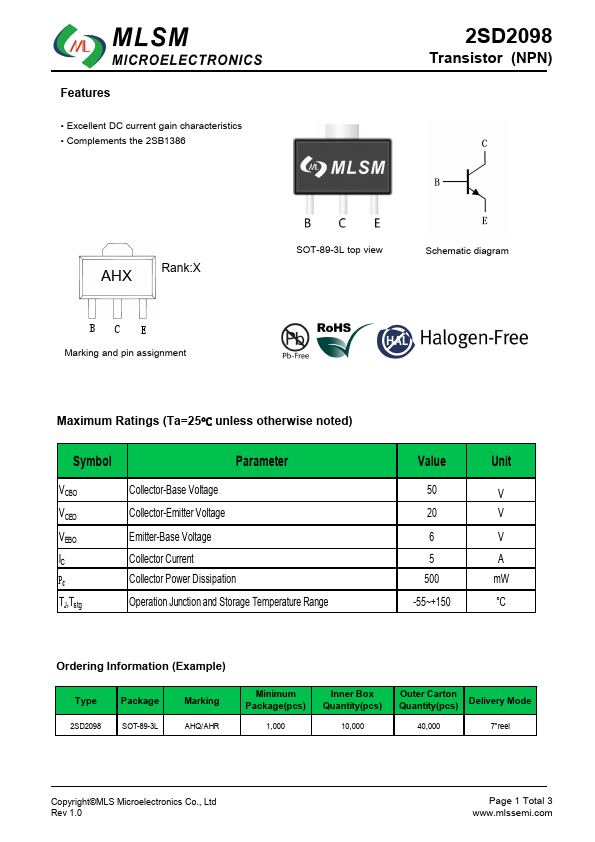

● Excellent DC current gain characteristics● Complements the 2SB1386 2SD2098 Transistor (NPN) AHX Rank:X BC E Marking and pin assignment SOT-89-3L top view Schematic diagram
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol Parameter VCBO VCEO VEBO IC PC TJ,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit 50 V 20 V 6 V 5 A 500 mW -55~+150 °C Ordering Information (Example) Type 2SD2098 Package SOT-89-3L Marking AHQ/AHR Minimum Package(pcs) 1,000 Inner Box Quantity(pcs) 10,000 Outer Carton Quantity(pcs) Delivery Mode 40,000 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 3 2SD2098 Transistor (NPN)ELECTRICAL CHARACTERISTICS

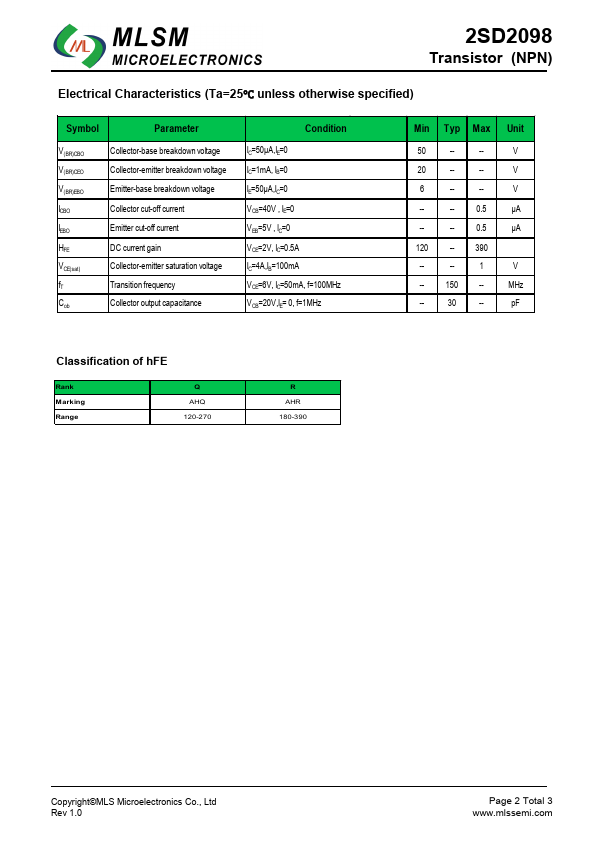

(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE VCE(sat) fT Cob Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown v...
