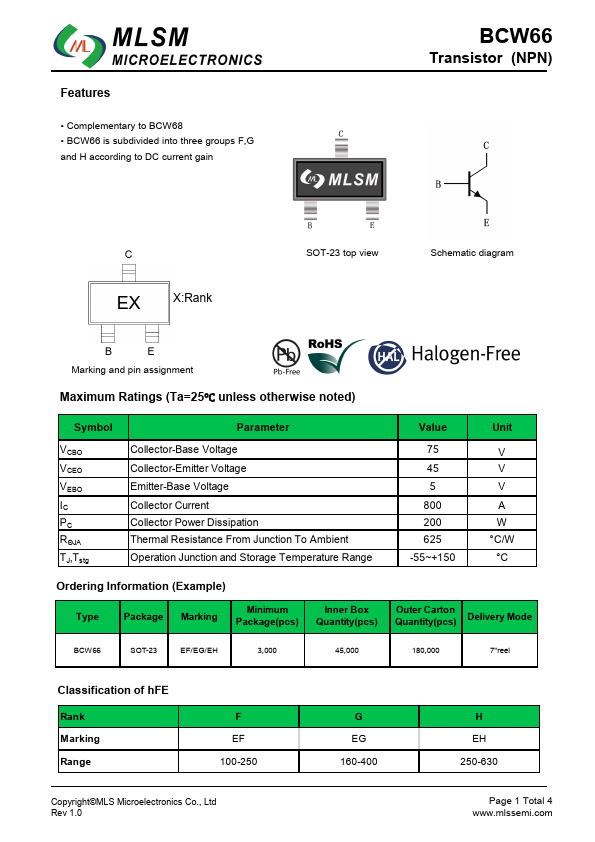

BCW66
Features
- plementary to BCW68
- BCW66 is subdivided into three groups F,G and H according to DC current gain
Transistor (NPN)
X:Rank
SOT-23 top view
Schematic diagram
Marking and pin assignment
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC RΘJA TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value
75 45 5 800 200 625 -55~+150
Unit
V V V A W °C/W °C
Ordering Information (Example)
Type
Package
Marking
Minimum Package(pcs)
Inner Box Quantity(pcs)
Outer Carton Quantity(pcs)
Delivery Mode
SOT-23
EF/EG/EH
3,000
45,000
180,000
7"reel
Classification of h FE
Rank Marking Range
F EF 100-250
G EG 160-400
H EH...
