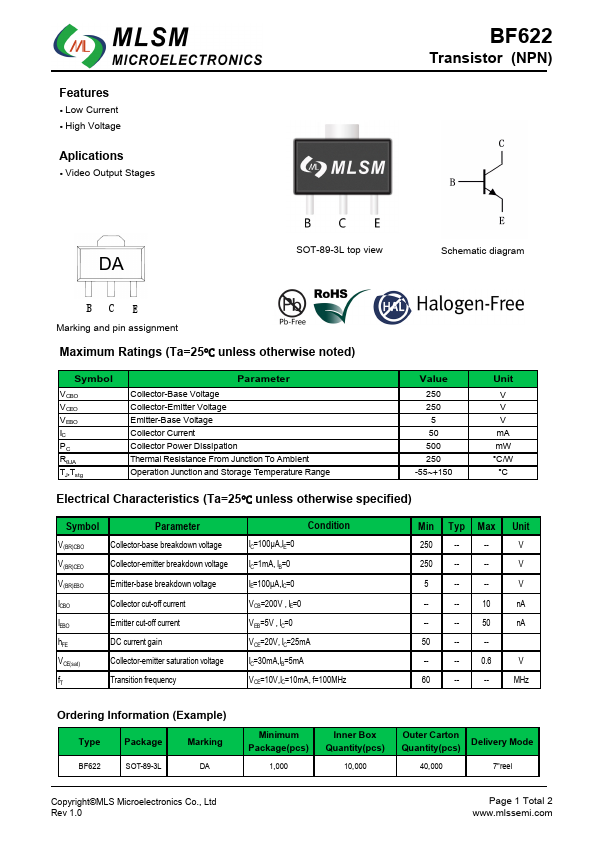

BF622 Datasheet NPN Transistor

Manufacturer: MLSM

Datasheet Details

Part number BF622
Manufacturer MLSM
File Size 574.93 KB
Description NPN Transistor
Datasheet BF622-MLSM.pdf

Key Features

  • Low Current.
  • High Voltage Aplications.
  • Video Output Stages BF622 Transistor (NPN) X:Rank DA SOT-89-3L top view Schematic diagram BC E Marking and pin assignment Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RθJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Ra.
