BF620 Datasheet | MLS Microelectronics

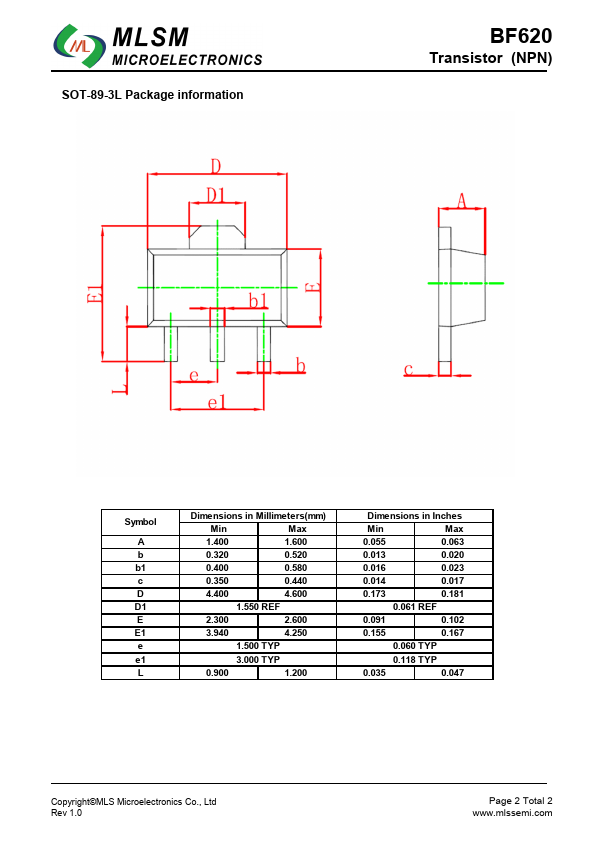

Features - Low current (max. 50m A) - High voltage (max. 300V). - Video output stages. Transistor (NPN) X:Rank BC E Marking and pin assignment SOT-89-3L top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value 300 300 5 50 500 -55~+150 Unit V V V m A m W °C Electrical Characteristics (Ta=25℃ unless otherwise specified) Symbol V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO h FE VCE(sat) f T Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Emitter cut-off current DC current gain Collector-emitter saturation voltage Transition frequency Condition IC=100μA,IE=0 IC=1m A, IB=0 IE=100μA,IC=0 VCB=200V , IE=0 VEB=5V , IC=0 VCE=20V, IC=25m A IC=30m A,IB=5m A VCE=10V,IC=10m A, f=100MHz Min Typ Max Unit 300...
