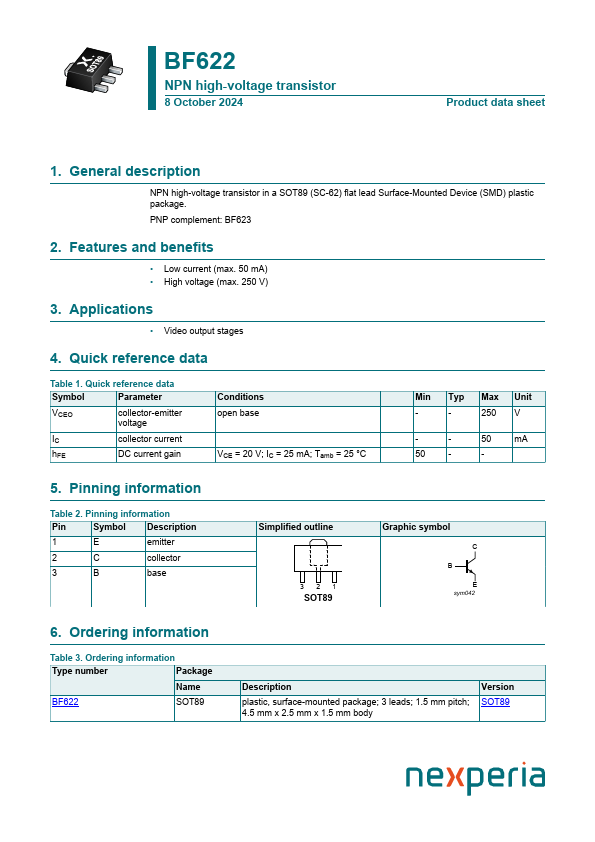

BF622
BF622 is NPN high-voltage transistor manufactured by Nexperia.
NPN high-voltage transistor
8 October 2024
Product data sheet
1. General description
NPN high-voltage transistor in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package. PNP plement: BF623
2. Features and benefits
- Low current (max. 50 m A)
- High voltage (max. 250 V)
3. Applications
- Video output stages
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current h FE
DC current gain
Conditions open base
VCE = 20 V; IC = 25 m A; Tamb = 25 °C
Min Typ Max Unit
- -
250 V
- -
- 50 m A
- 5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
E emitter
C...
