MLSM BF821
PNP Transistor
| Part No. | BF821 |
|---|---|
| Datasheet | BF821 Download |
| Manufacturer |  MLSM |
| Description | PNP Transistor |
| Buy | Stock & Price |
FEATURES
● Low current (max.-50 mA)● High voltage (max.-300V) C

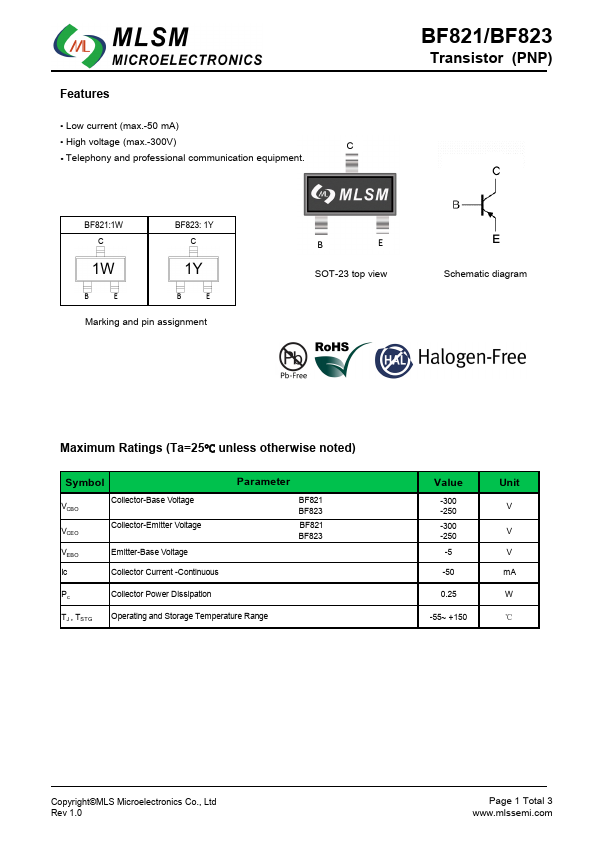

● Telephony and professional communication equipment. BF821:1W C BF823: 1Y C 1W 1Y B E B E Marking and pin assignment B E SOT-23 top view BF821/BF823 Transistor (PNP) C B E Schematic diagram
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage Ic Collector Current -Continuous Parameter BF821 BF823 BF821 BF823 Pc Collector Power Dissipation TJ , TSTG Operating and Storage Temperature Range Value -300 -250 -300 -250 -5 -50 0.25 -55~ +150 Unit V V V mA W ℃ Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 3 BF821/BF823 Transistor (PNP)ELECTRICAL CHARACTERISTICS

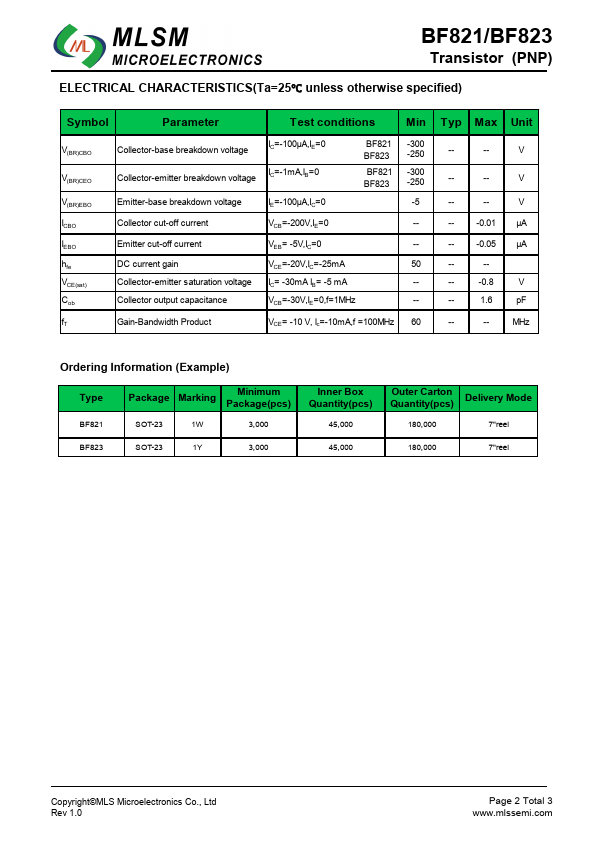

(Ta=25℃ unless otherwise specified) Symbol Parameter Test conditions Min Typ Max Unit V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO hfe VCE(sat) Cob fT Collector-base breakdown voltage IC=-100μA,IE=0 Collector-emitter breakdown voltage IC=-1mA,IB=0 Emitter-base breakdown voltage I...
