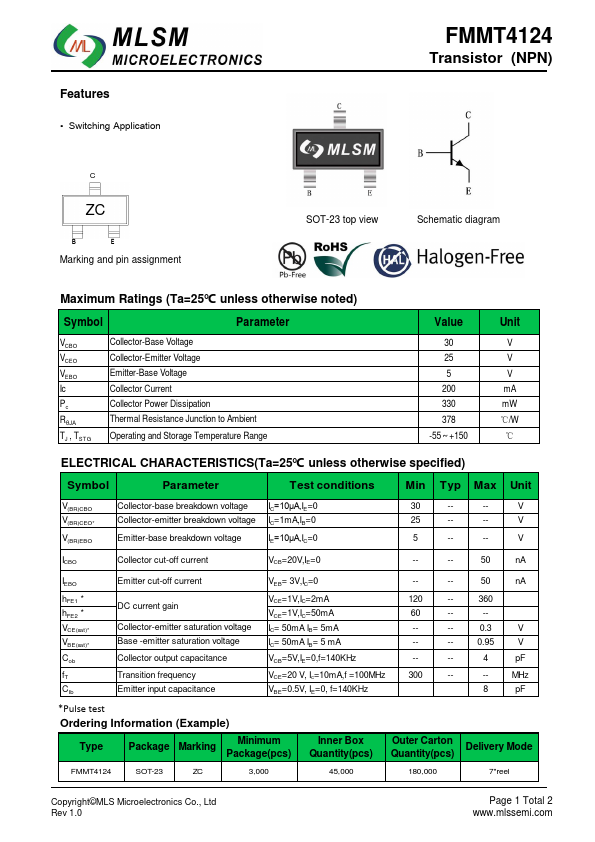

Datasheet Summary
Features
- Switching Application
Transistor (NPN)
Marking and pin assignment

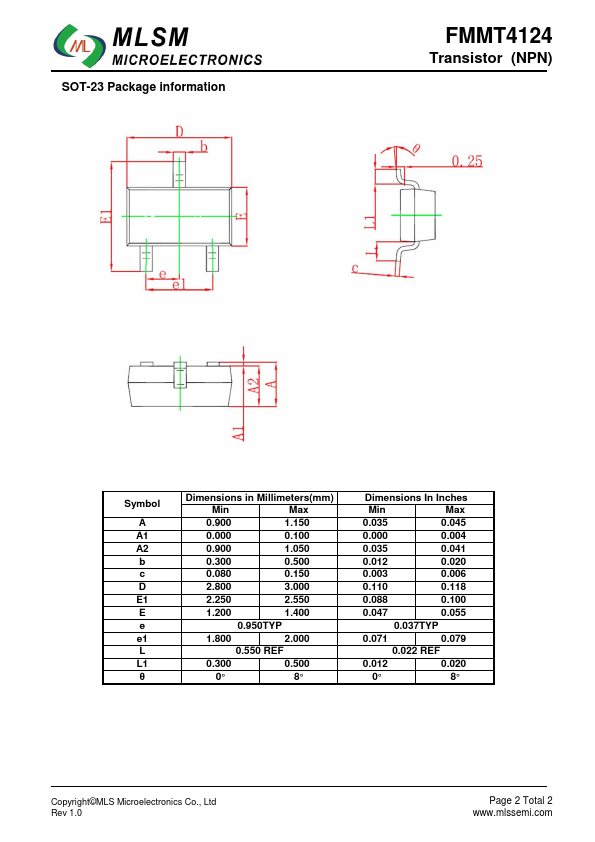

SOT-23 top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO VCEO VEBO Ic Pc RθJA TJ , TSTG
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range
Value
30 25 5 200 330 378 -55～+150
Unit
V V V mA mW ℃/W ℃
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Symbol
Parameter
Test conditions
Min Typ Max Unit
V(BR)CBO V(BR)CEO- V(BR)EBO
Collector-base breakdown voltage Collector-emitter...
