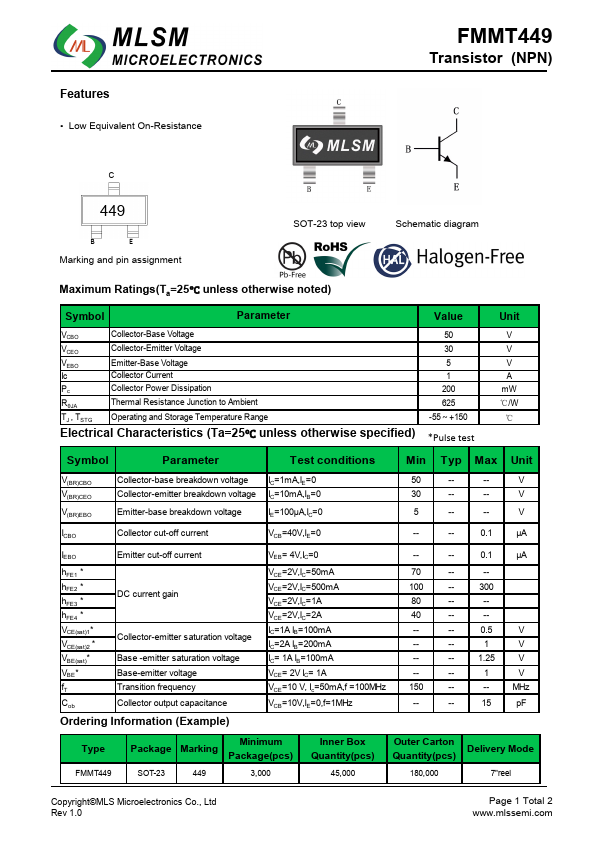

Datasheet Summary
Features
- Low Equivalent On-Resistance
Transistor (NPN)
Marking and pin assignment

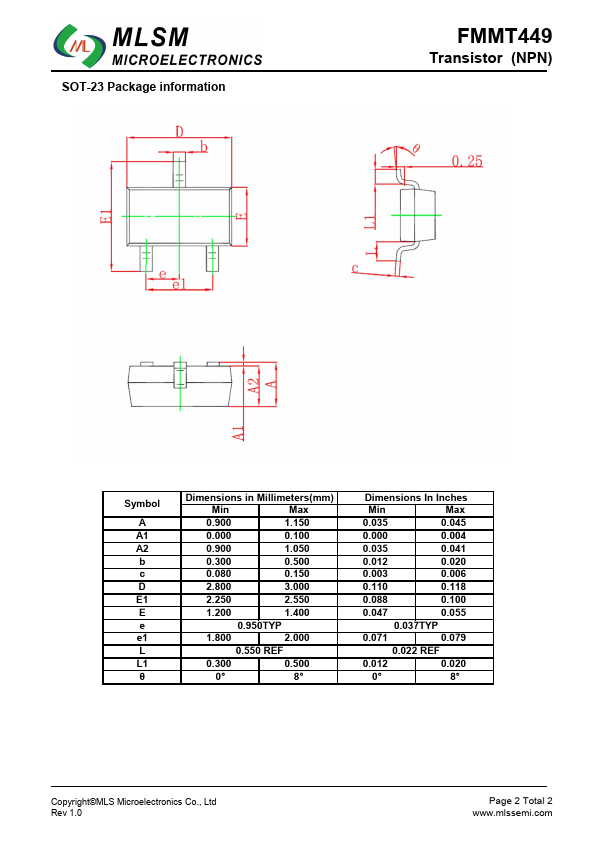

SOT-23 top view
Schematic diagram
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO
Collector-Base Voltage
VCEO
Collector-Emitter Voltage
VEBO Ic
Emitter-Base Voltage Collector Current
Pc
Collector Power Dissipation
RθJA
Thermal Resistance Junction to Ambient
TJ , TSTG Operating and Storage Temperature Range
Electrical Characteristics (Ta=25℃ unless otherwise specified)
Value
50 30 5 1 200 625 -55～+150
- Pulse test
Unit
V V V A mW ℃/W ℃
Symbol
Parameter
Test conditions
Min Typ Max...
