KTA1664 Datasheet | MLS Microelectronics

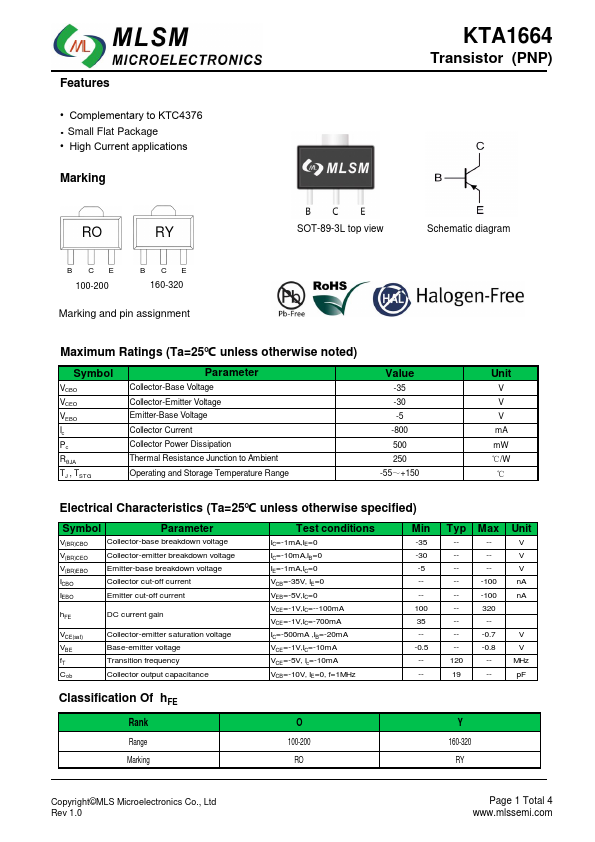

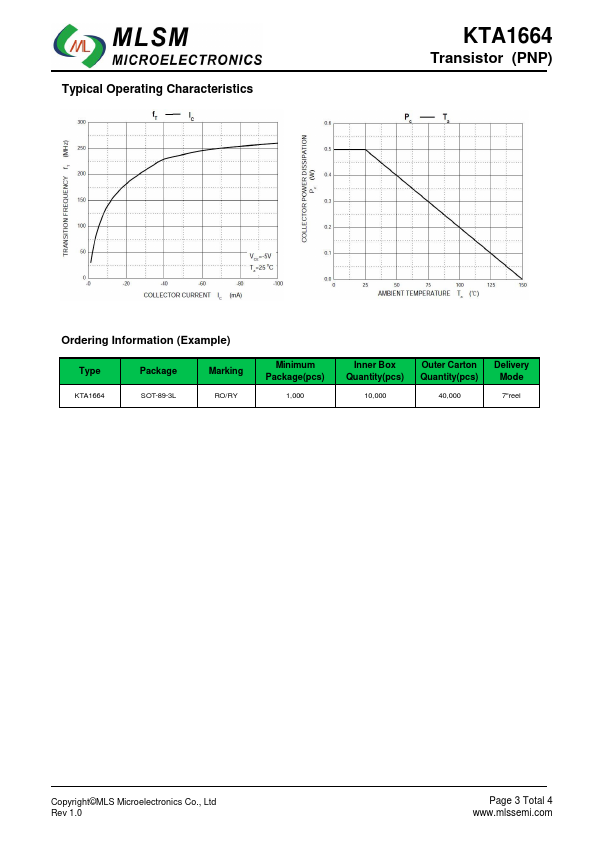

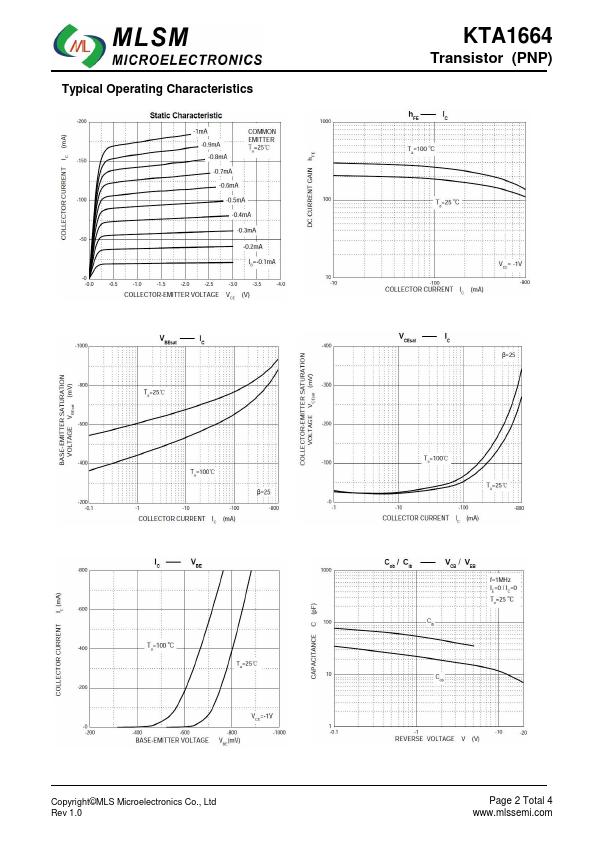

Features - plementary to KTC4376 - Small Flat Package - High Current applications Marking Transistor (PNP) SOT-89-3L top view Schematic diagram B CE 100-200 B CE 160-320 Marking and pin assignment Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO Ic Pc RθJA TJ , TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range Value -35 -30 -5 -800 500 250 -55～+150 Unit V V V m A m W ℃/W ℃ Electrical Characteristics (Ta=25℃ unless otherwise specified) Symbol Parameter V(BR)CBO V(BR)CEO Collector-base breakdown voltage Collector-emitter breakdown voltage V(BR)EBO Emitter-base breakdown voltage ICBO Collector cut-off current IEBO Emitter cut-off current h FE DC current gain VCE(sat) VBE f T Cob Collector-emitter saturation voltage Base-emitter voltage Transition frequency Collector output capacitance Test conditions IC=-1m A,IE=0 IC=-10m A,IB=0 IE=-1m A,IC=0 VCB=-35V, IE=0 VEB=-5V,IC=0 VCE=-1V,IC=--100m A VCE=-1V,IC=-700m A IC=-500m A ,IB=-20m A VCE=-1V,IC=-10m A VCE=-5V, Ic=-10m A VCB=-10V, IE=0,...
